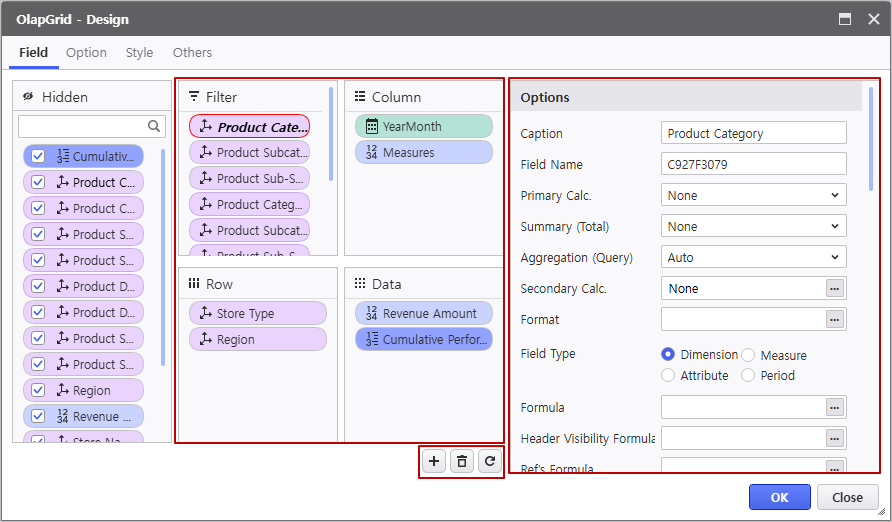

This section defines properties for each field retrieved from META or SQL.
Select a field from the list on the left and set each field's properties in the Options section.
| Type | Description |
|---|---|
| Add a new field |
| Delete the selected field |
| Refresh the fields information (Available when using SQL.) |
< Olap-Grid Design (Field) - Detailed Description >
| Type | Description | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Caption | Data field name to be displayed on the screen | ||||||||||||
| Field Name | The unique name of the field. Must be unique within the screen. | ||||||||||||
| Primary Calc. | Specifies the aggregate function applied to grouped data in the Pivot Screen. Detailed Information for Primary Calc. For more information, please refer to Olap Primary Calculation page. | ||||||||||||
Summary (Total) | Specifies a separate calculation method for totals or subtotals Detailed Information for Summary(Total) For more information, please refer to Olap Summary(Total) page. | ||||||||||||
| Aggregation Type (Query) | Specifies a Group function to be used in SQL (Applied in Hybrid Query) Detailed Information for Aggregation Type(Query) For more information, please refer to Olap Aggregation Type (Query) page. | ||||||||||||
| Secondary Calc. | Configures advanced analysis functions (SubTotalPercentOfRow, RunningSum, ...) Used for additional operations based on the results of the Primary Calculation. Detailed Information for Secondary Calculation For more information, please refer to Olap Secondary Calculation page. | ||||||||||||

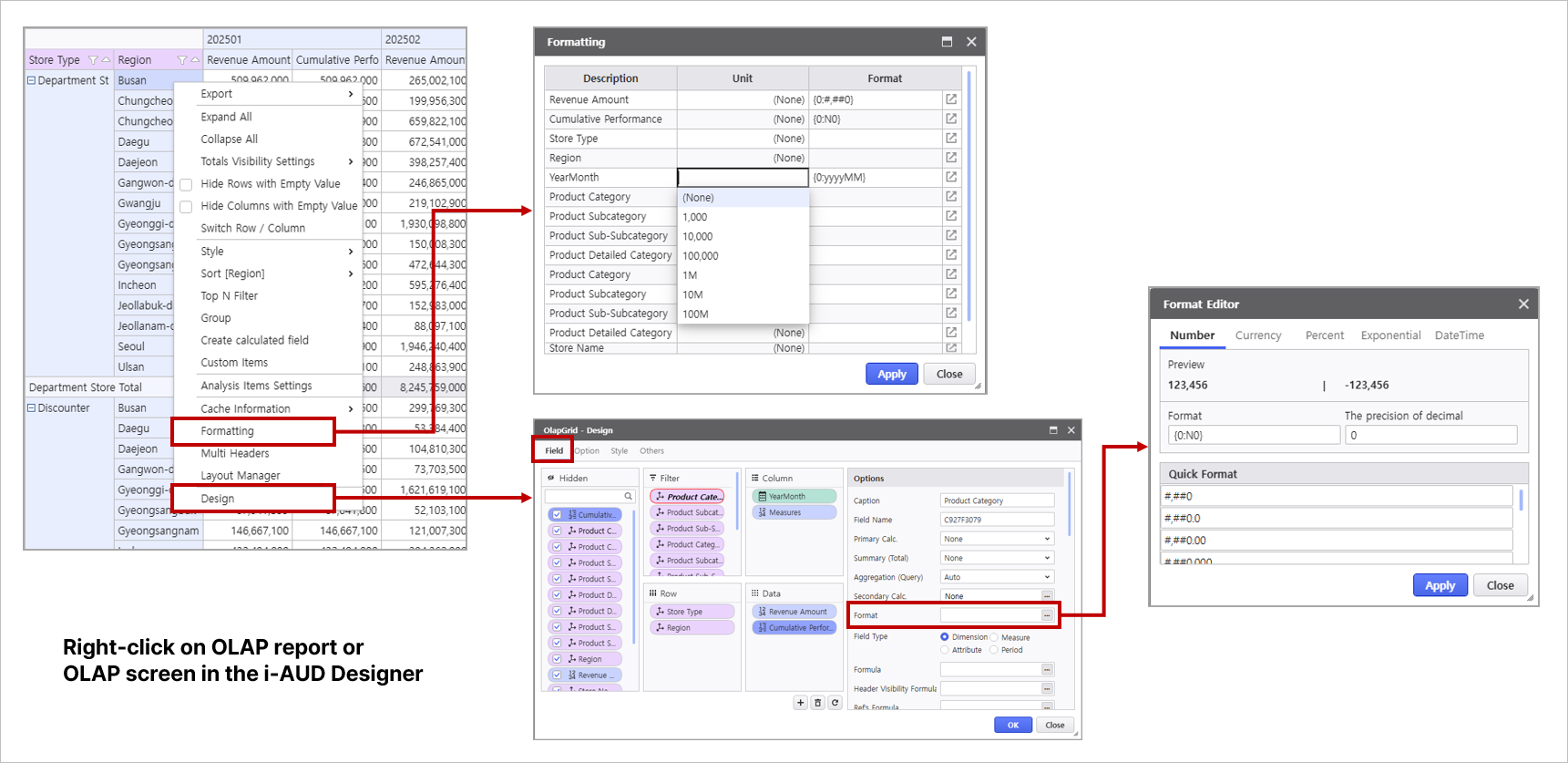

| Format | Configures the data format to be applied to the field (Number, Currency, Percent, Percent, Exponential, DateTime) Detailed Information for Format Detailed Information for Format
| ||||||||||||
| Field Type | The type of field to be displayed in the Olap-Grid Specify from [Dimension : Analysis, Measure : Value, Attribute : Property, Period : Time] | ||||||||||||
| Formula | Defines formulas for calculated fields Detailed Information for Formula For more information, please refer to Olap Formula page. | ||||||||||||
| Header Visibility Formula | Defines formulas to perform item hiding Detailed Information for Header Visibility Formula For more information, please refer to Olap Formula page. | ||||||||||||
| Ref's Formula | Write a formula to reference | ||||||||||||
| Sort | Defines the data sort order for the field (descending, ascending) | ||||||||||||
| Sort field | Defines which field to use for sorting logic (ex: Select Analysis Item Name → Analysis Item Code) | ||||||||||||

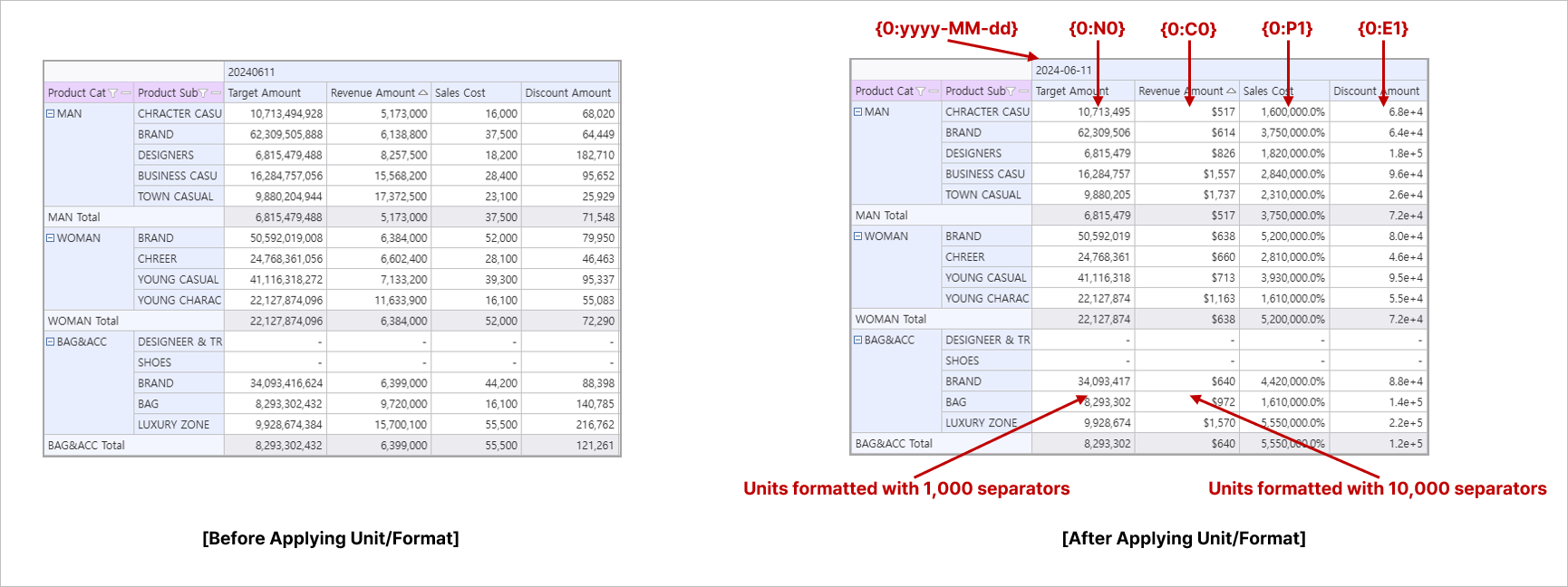

| Unit | Specifies the unit if the field type is ‘Measure’ (1,10,100,1000, etc.) | ||||||||||||

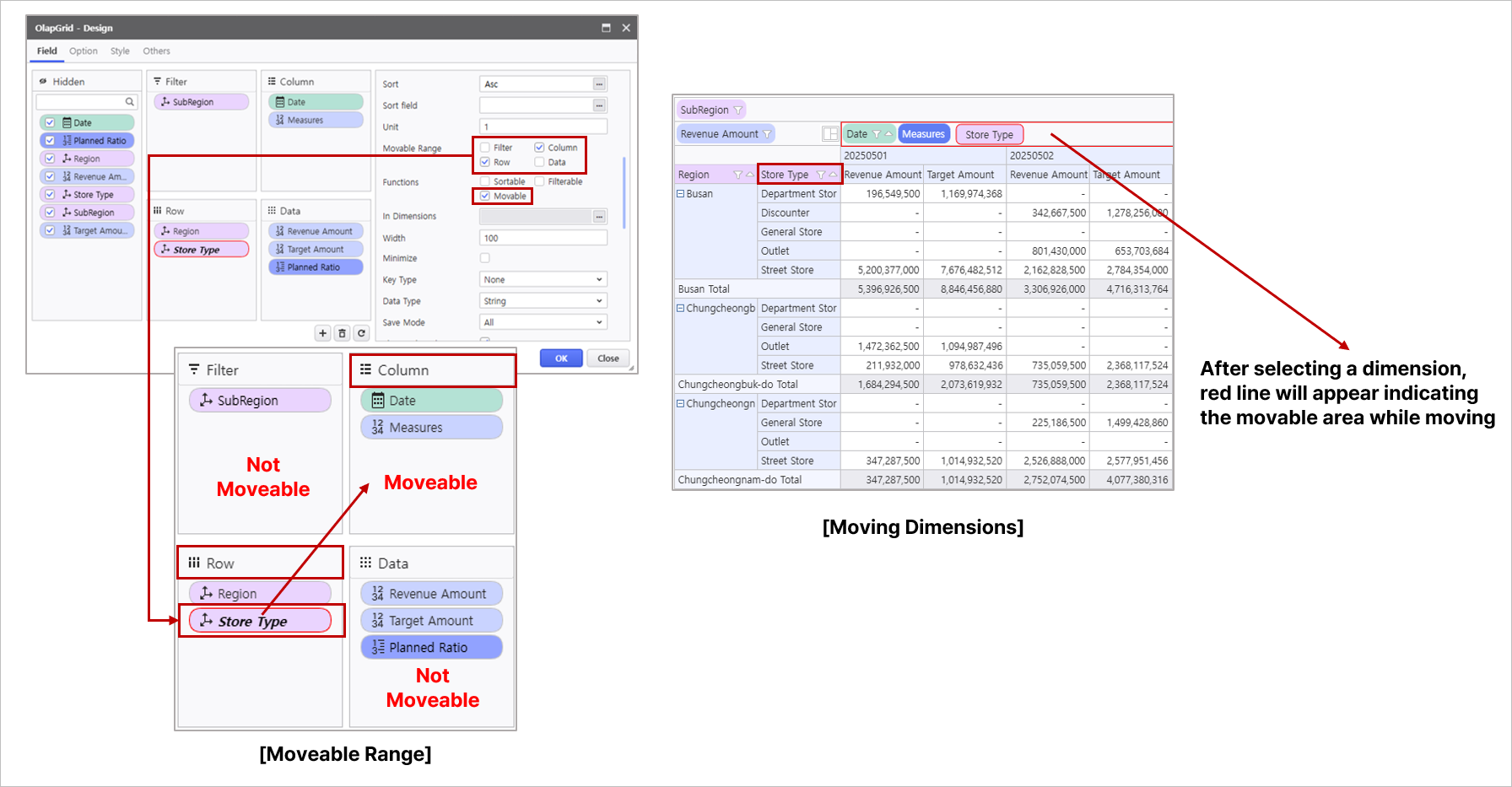

| Movable Range | Specifies the areas where the field can be positioned in the execution screen (Filter, Column, Row, Data) Detailed Information for Movable Range Detailed Information for Movable Range
※ Once an area is checked, the item can be moved to the checked area. (Unless the function property is also checked) | ||||||||||||

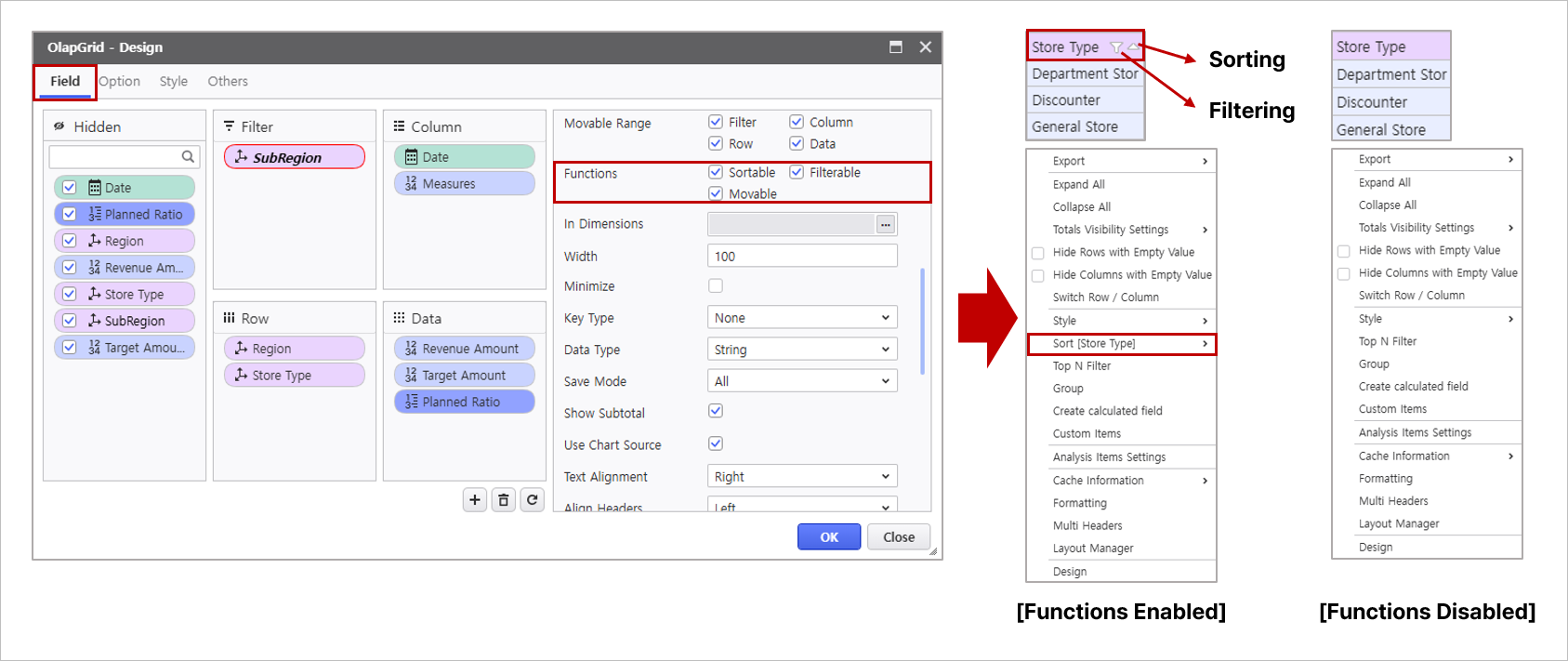

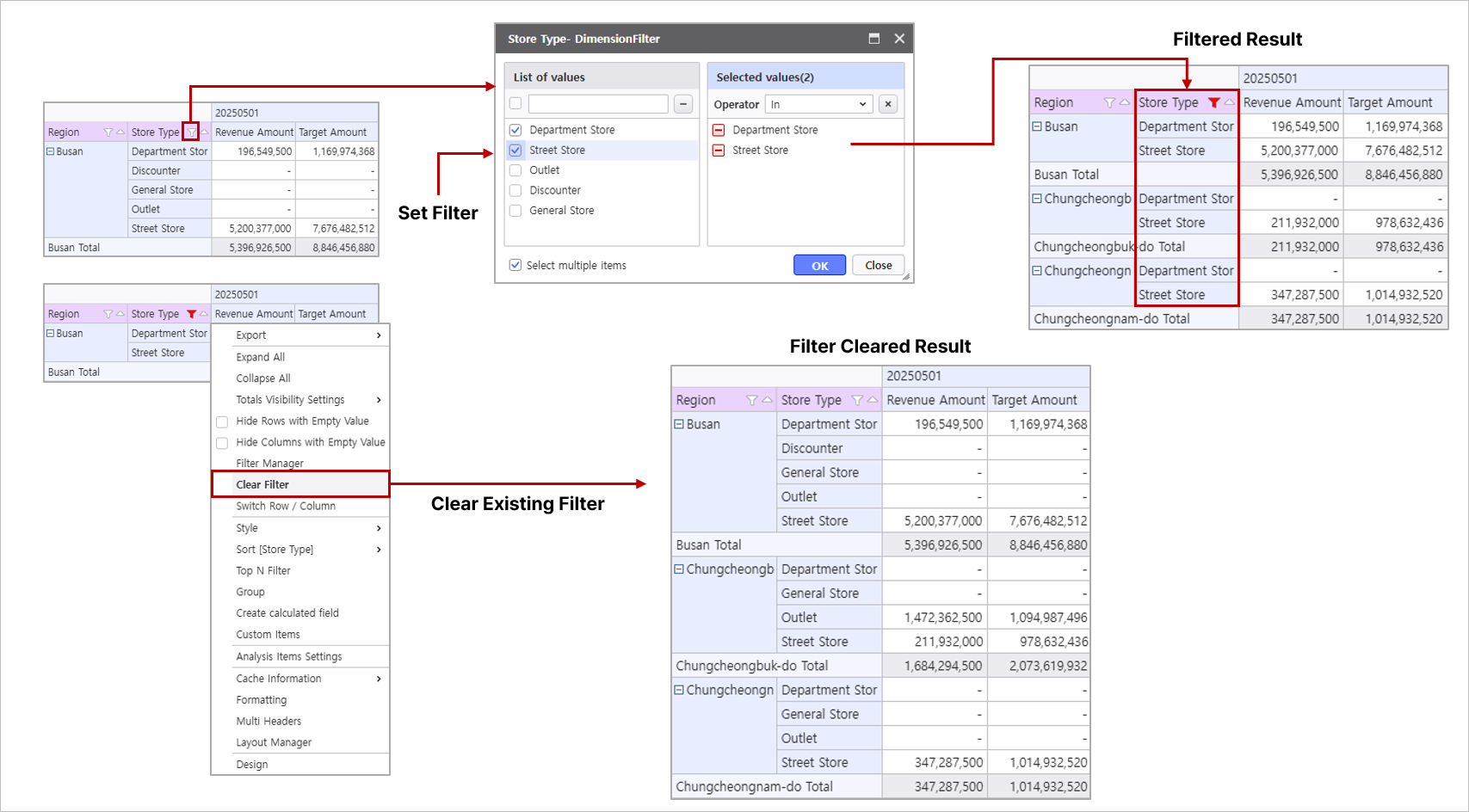

| Functions | Selects functions available for analysis item on the screen (Sortable, Filterable, Movable) Detailed Information for Functions Detailed Information for Functions
| ||||||||||||

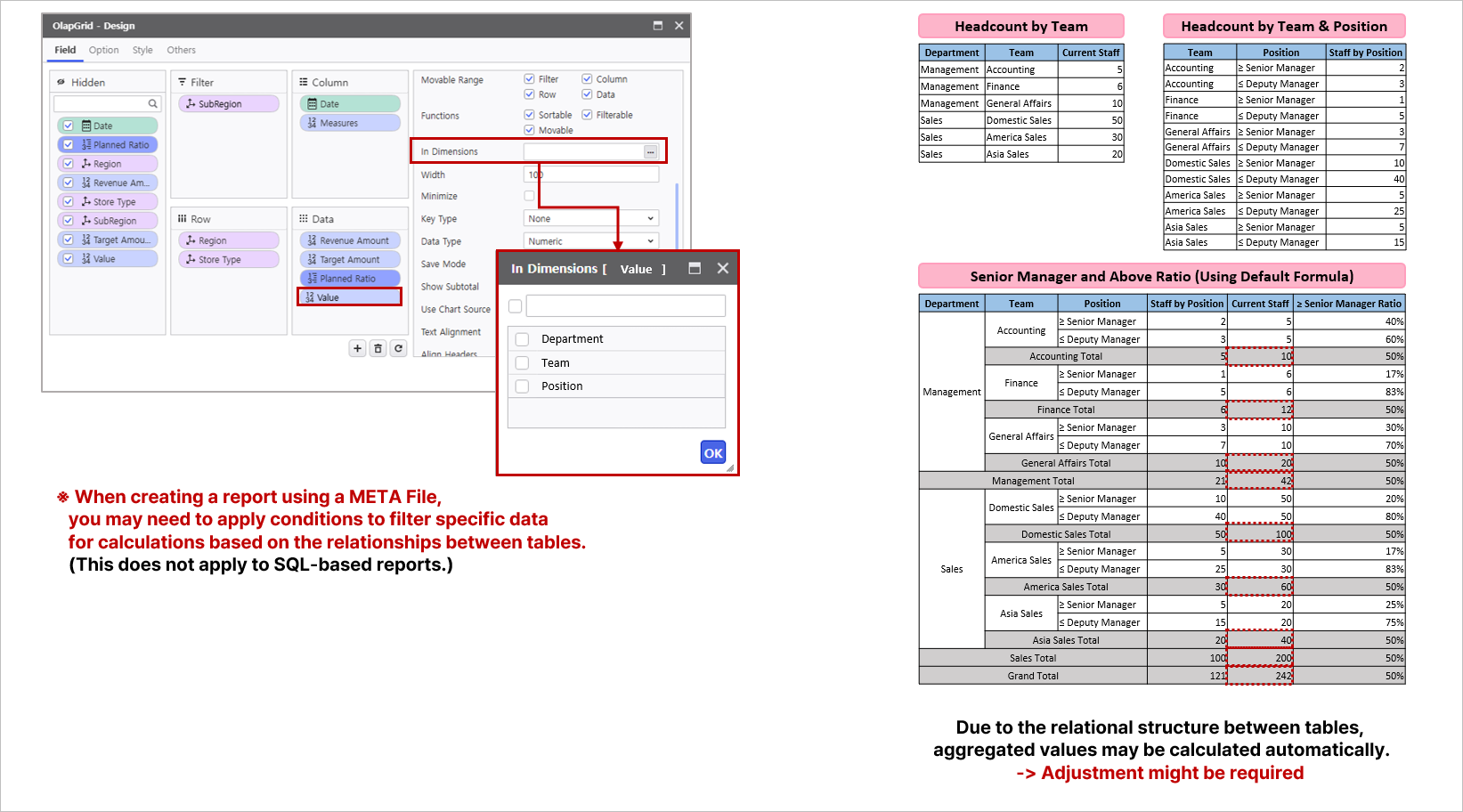

| In Dimensions | Separately calculates data based on specific conditions among data retrieved through relationships among tables (Applicable if field type is Measure) Detailed Information for In Dimension Detailed Information for In Dimension
| ||||||||||||
| Width | Specifies the width within the Olap-Grid after filed placement Width can be set for a single item or multiple items simultaneously When setting simultaneously, configured items should be in the same area. | ||||||||||||
| Mininize | Configures field hiding | ||||||||||||
| Key Type | Set the Key type of the field Required when using Olap-Grid as CRUD Base | ||||||||||||
| Data Type | Set the data type of the field When using CRUD operations, defines criteria for input value consistency (Number, String, etc.) | ||||||||||||
| Save Mode | When using CRUD operations, sets the data save mode (All, InsertOnly, UpdateOnly) Detailed Information for Save Mode Detailed Information for Save Mode
| ||||||||||||
| Show Subtotal | Sets whether to display subtotals for data included in the field | ||||||||||||
| Use Chart Source | Sets whether the field's data is linked to a chart | ||||||||||||
| Text Alignment | Specifies data value alignment (Center, Left, Right) | ||||||||||||
| Align Headers | Sets header text alignment (Center, Left, Right) | ||||||||||||
| Header Cell Style (Cell) | Specifies the style of the row/column header area, Applies to regular cells, not subtotals | ||||||||||||
| Header Cell Style (Total Cell) | Specifies the style of subtotals within the row/column header area | ||||||||||||
| Data Cell Style (Cell) | Specifies the style for regular cells of the corresponding field within the data area | ||||||||||||
| Data Cell Style (Total Cell) | Specifies the style for subtotal cells of the corresponding field within the data area | ||||||||||||
| Data Cell Style (Grand Total) | Specifies the style for grand total cells of the corresponding field within the data area | ||||||||||||
| Tooltip Field Name | Sets the tooltip text for the field name | ||||||||||||
| Tooltip Text | Sets the text to be displayed as a tooltip | ||||||||||||
| Language Code | Sets the filed name for the corresponding foreign language code when using foreign languages | ||||||||||||
| Format Language Code | Sets the foreign language format code |
