Represent i-META fields into hierarchical structure for Drill Up/Down.

Step 1. Create a Field Group

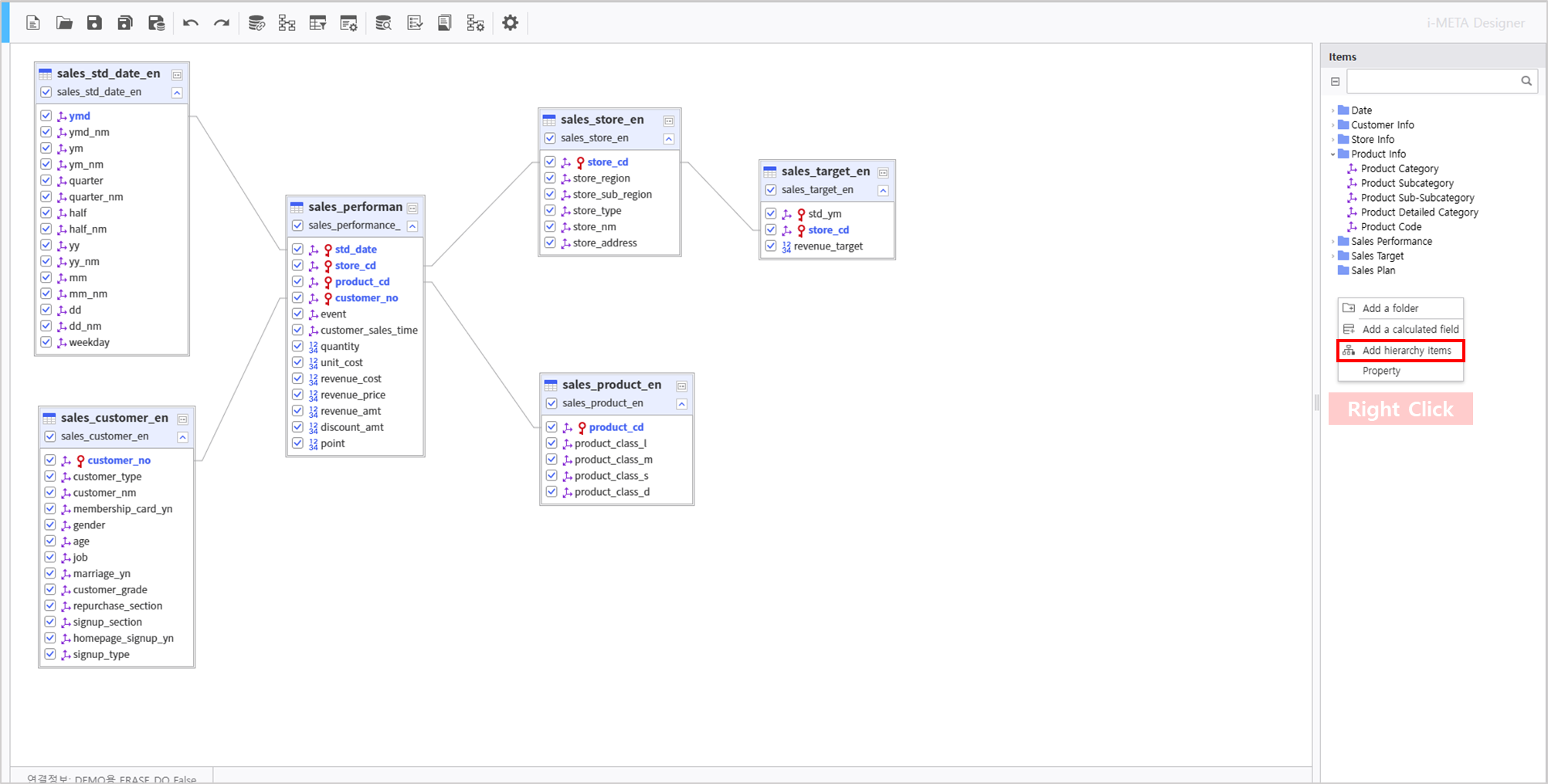

1. Right-click in the i-META item window, and select [Add hierarchy items] to create a Field Group.

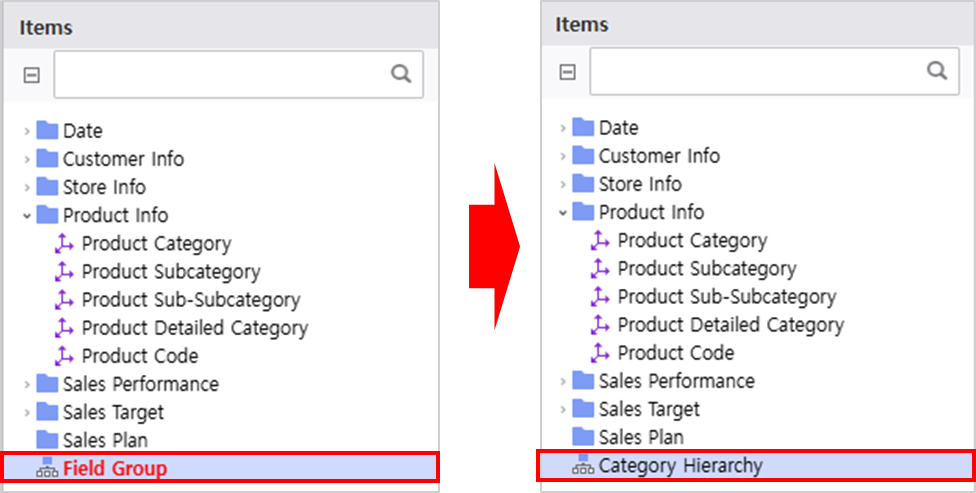

2. Rename the created Field Group item to [Category Hierarchy].

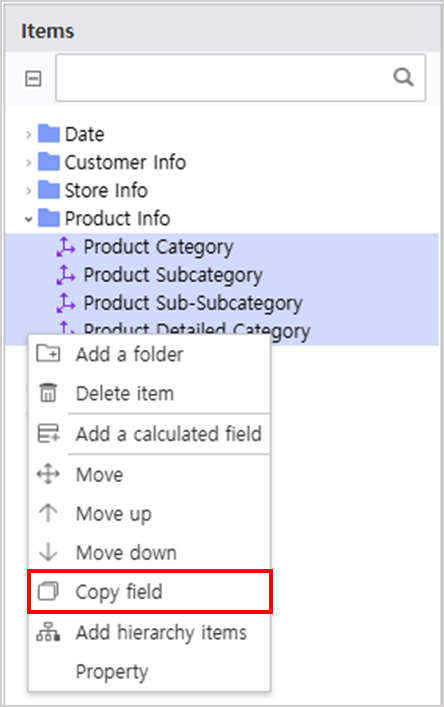

3. Select the 'Product Category', 'Product Subcategory', 'Product Sub-Subcategory', and 'Product Detailed Category' fields using [Ctrl] key for multiple selection, and then right-click and select [Copy Field] menu.

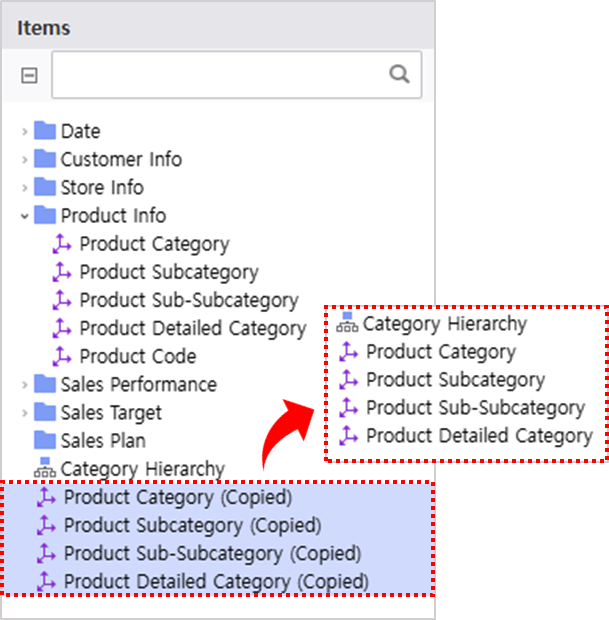

4. Rename the copied fields.

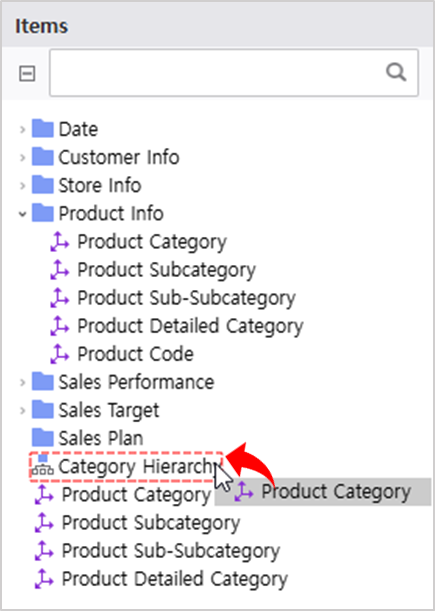

5. Drag & Drop the 'Product Category' field with the moouse to place it inside the [Category Hierarchy] folder. Then, sequentially place the 'Product Subcategory', 'Product Sub-Subcategory', and 'Product Detailed Category' inside the 'Category Hierarchy' folder.

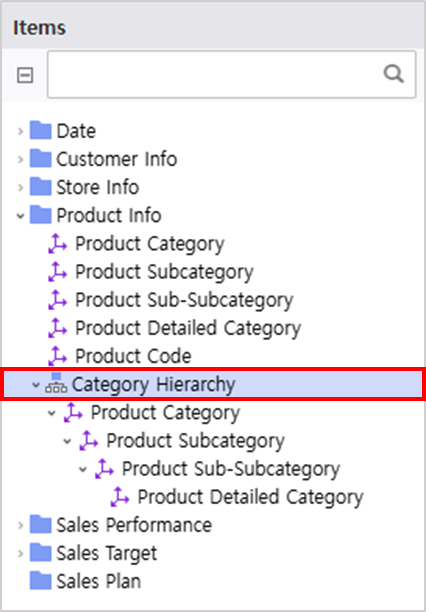

6. Once the placement is completed, Drag & Drop the 'Category Hierarchy' to move it to the 'Product Info' folder.



   Note : Changing Order

   Since modifications are not possible after adding the field, you need to delete the group and set it again.

   Note : How to Use a Field as a General Field in Parallel

   If you want to use a field as a general field in parallel, copy and reuse the field.



Step 2. Retrieve Data

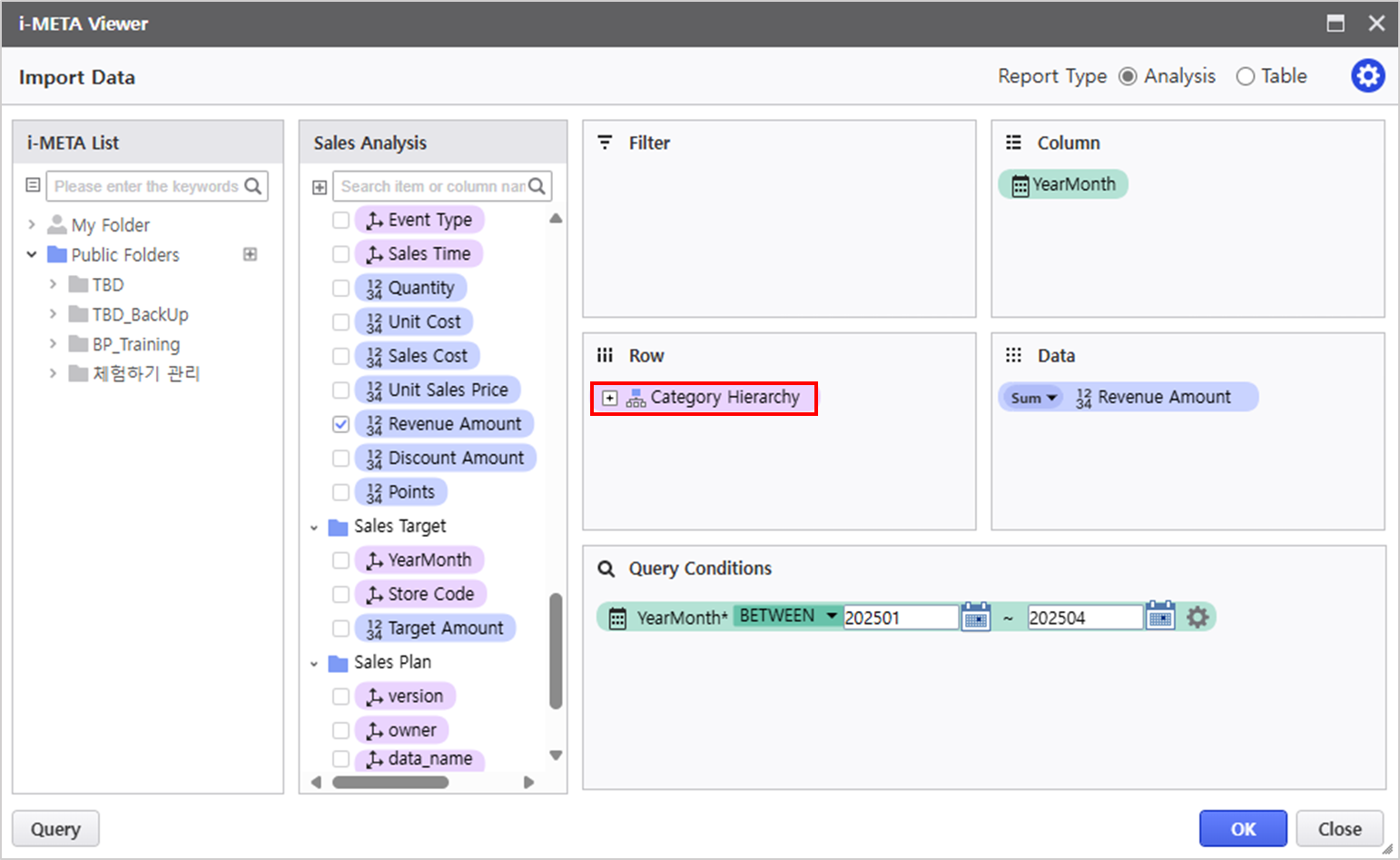

1. In the Import Data window, perform a query including the fields.

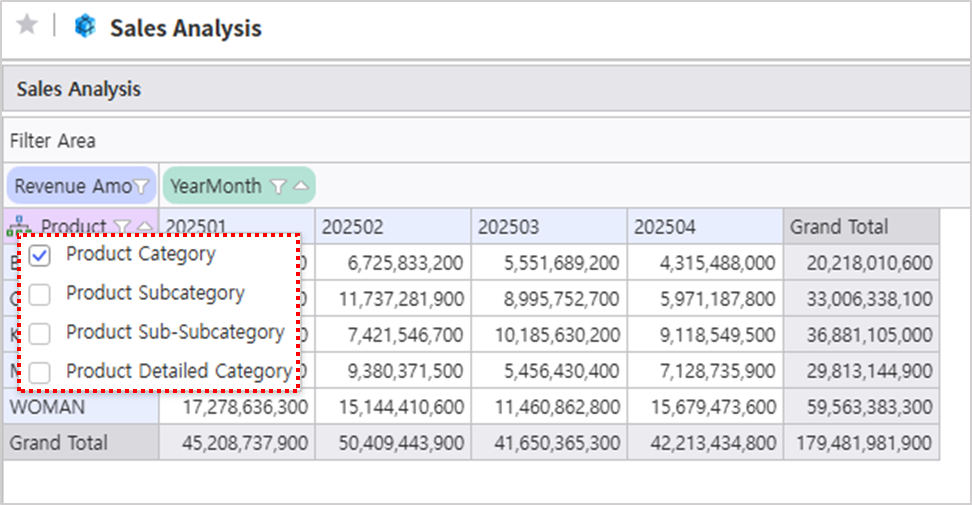

2. In the query screen, click the hierarchy icon of the relevant field, then select the desired item to retrieve the data.





   Note : How to Retrieve the Hierarchical Data

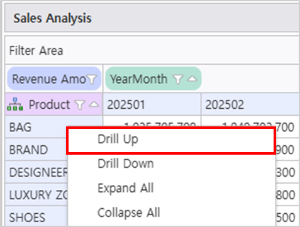

   Drill Up

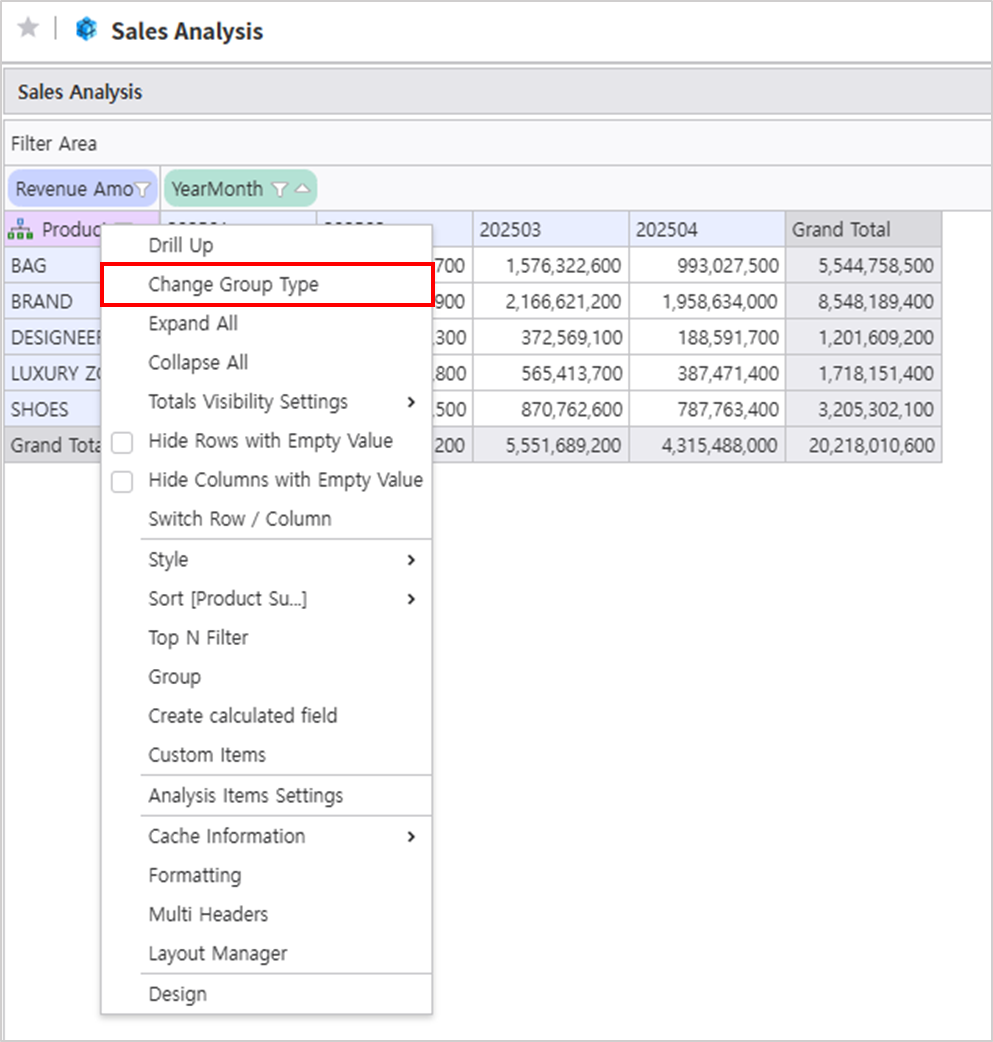

   How to Change the Group Type?
   Right-click on the relevant field and select the [Change Group Type] to view.
