Step1. Supported Environment for the Installation Manager
Supported Products and Environments
| Component | Name | Description |
|---|---|---|
Environment Configuration Components | Java | Required runtime for running the AUD Platform (Default : Open JDK 1.8) |
| Python | Required runtime for the Installation Manager (Default : 3.7) | |
| Tomcat | Servlet Container for the AUD Platform (Default : 8.5.39) | |
| PostgreSQL | DBMS used for #Matrix Repository (Default : 10.7.1) | |
| Git | Version control tool for managing and protecting AUD Platform source code | |
BI MATRIX Product Components | AUD Server | Main BI server responsible for DB connection management, Repository control, and more ▶ Includes i-MATRIX / i-AUD / i-OLAP |
| i-META Server | Server that generates queries based on the META configurations set by the client | |
| Others | Installation Manager | Product Installation and Source Management Tool |
Step2. Installing the Product
Download Auto Installation Tool
▶ Select the appropriate installer version based on the server type you're installing on.
Run/Stop Installation Manager for Windows
Follow these steps to run and stop the Installation Manager on Windows.

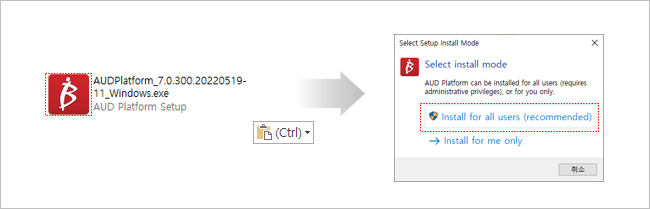

Run/Stop Installation Manager for WindowsStep 1
▶ Double-click the downloaded installation file to beign.
▶ In the Select Setup Install Mode step, choose "Install for all users(recommended)".

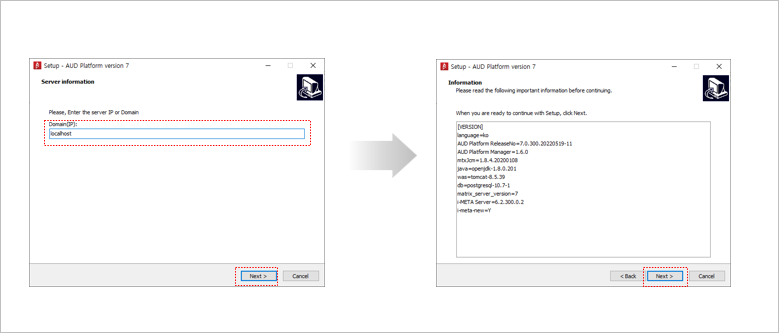

Step 2
▶ Enter the domain(IP) of the server where the product will be installed, then click "Next".
(For personal users, you may enter localhost. For corporate installations, this information is required, since it is used when issuing the license.)▶ Check the version of the product to be installed and click "Next".

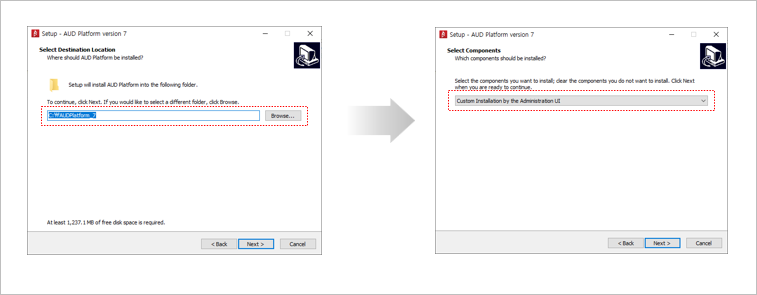

Step 3
▶ Click “Browse” to select the installation path, then click “Next”. (Default path: C:\AUDPlatform_7)
▶ Select an installation method and click “Next”.
1. Default Installation by Automatically : Runs the full installation process automatically.(Including port setup for installation)
2. Custom Installation by the Administration UI : Uses the admin page(Web-based) to guide installation.Recommended when installing on a separate server such as Linux..

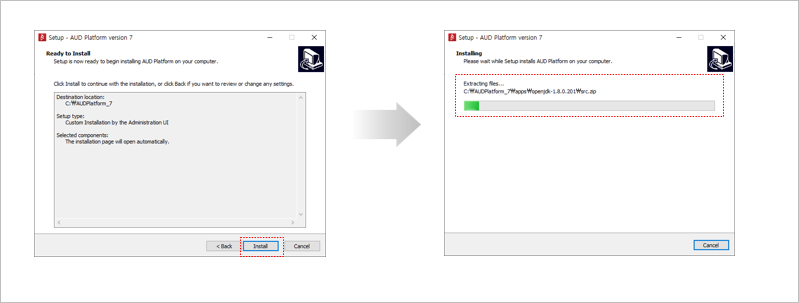

Step 4
▶ Click "Install".
The insatller will automatically set up necessary packages in the selected directory.
(Takes about 1 ~ 5 minutes depending on server performance)

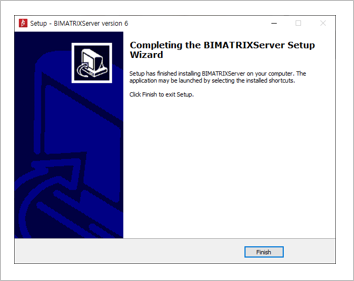

Step 5
▶ Once the environment setup is complete, installation continues based on the method selected in Step 3.
You may safely close the window by clicking "Finish", even while installation is in progress.

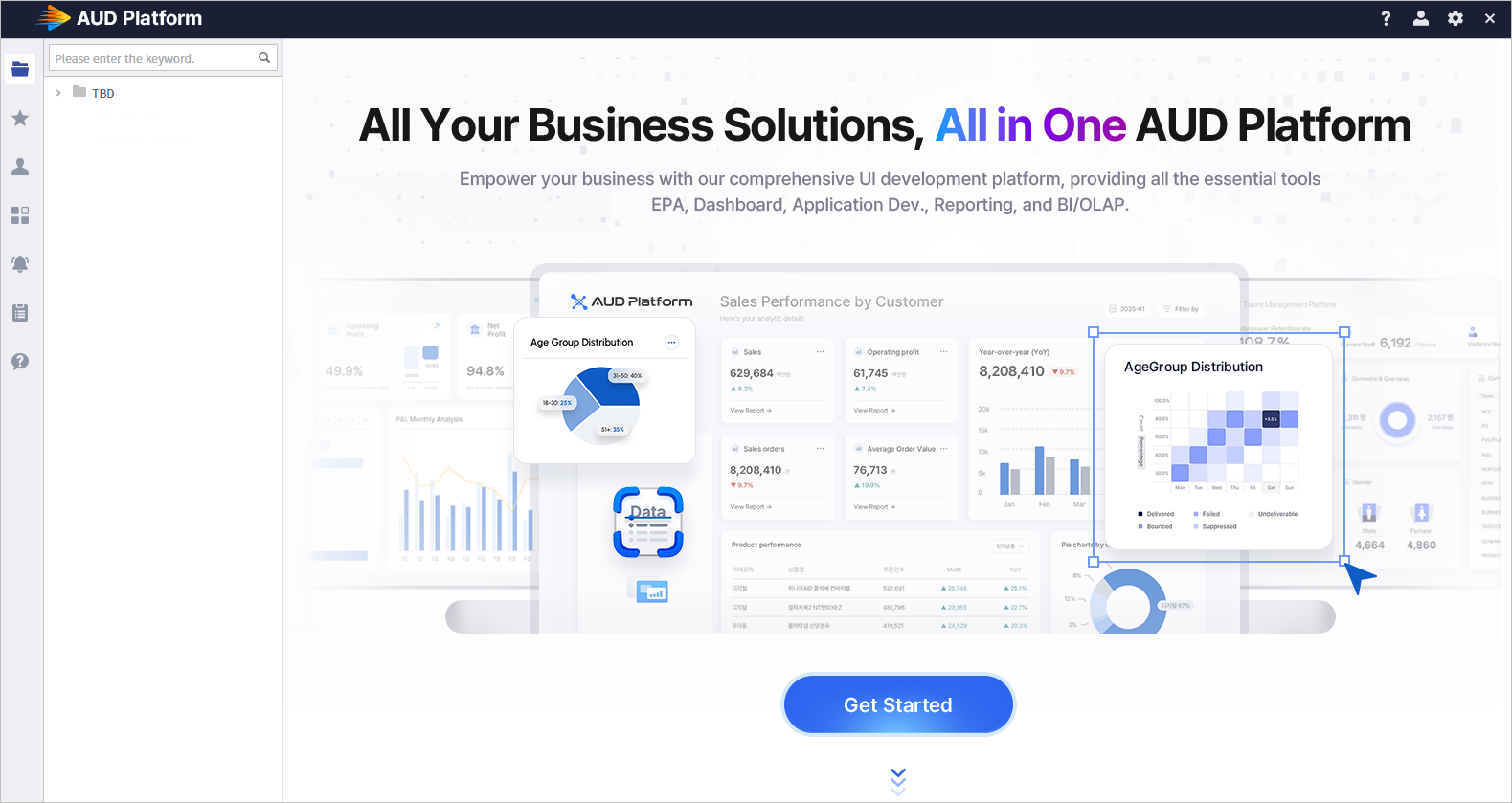

Step 6
▶ Installation is required only once during the initial login. After that, the AUD Platform is launched immediately upon access.
