Step 1. Set Query Condition

In i-AUD Designer, create a query condition Control and set query condition for data.

1.1 Create Control

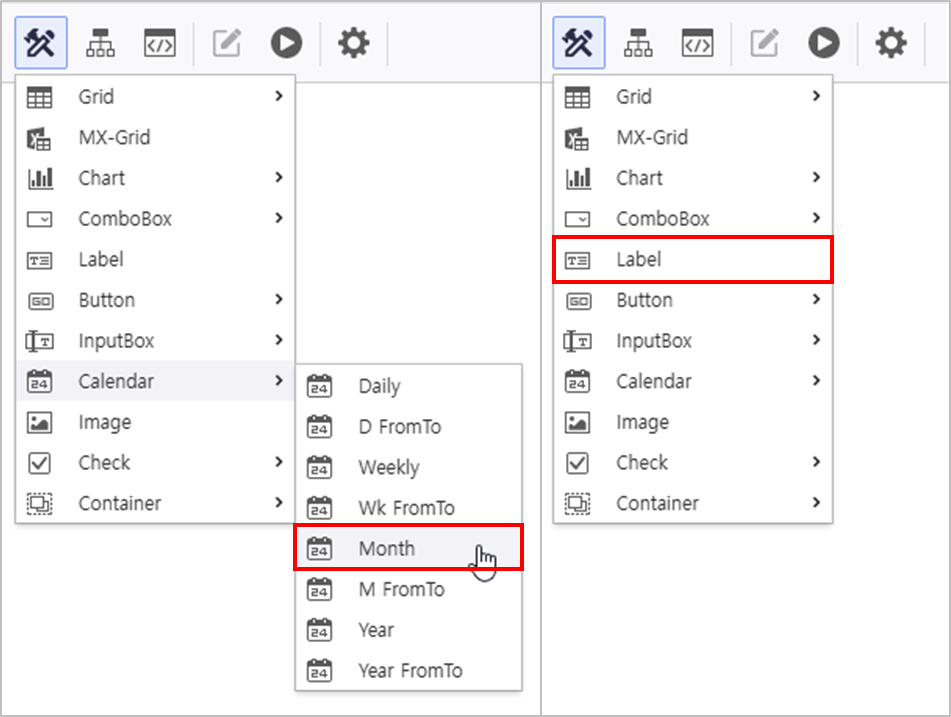

1. At the top menu, click UI Bot > Calendar, Label to create a label Control.


1.2 Set Properties of Each Control

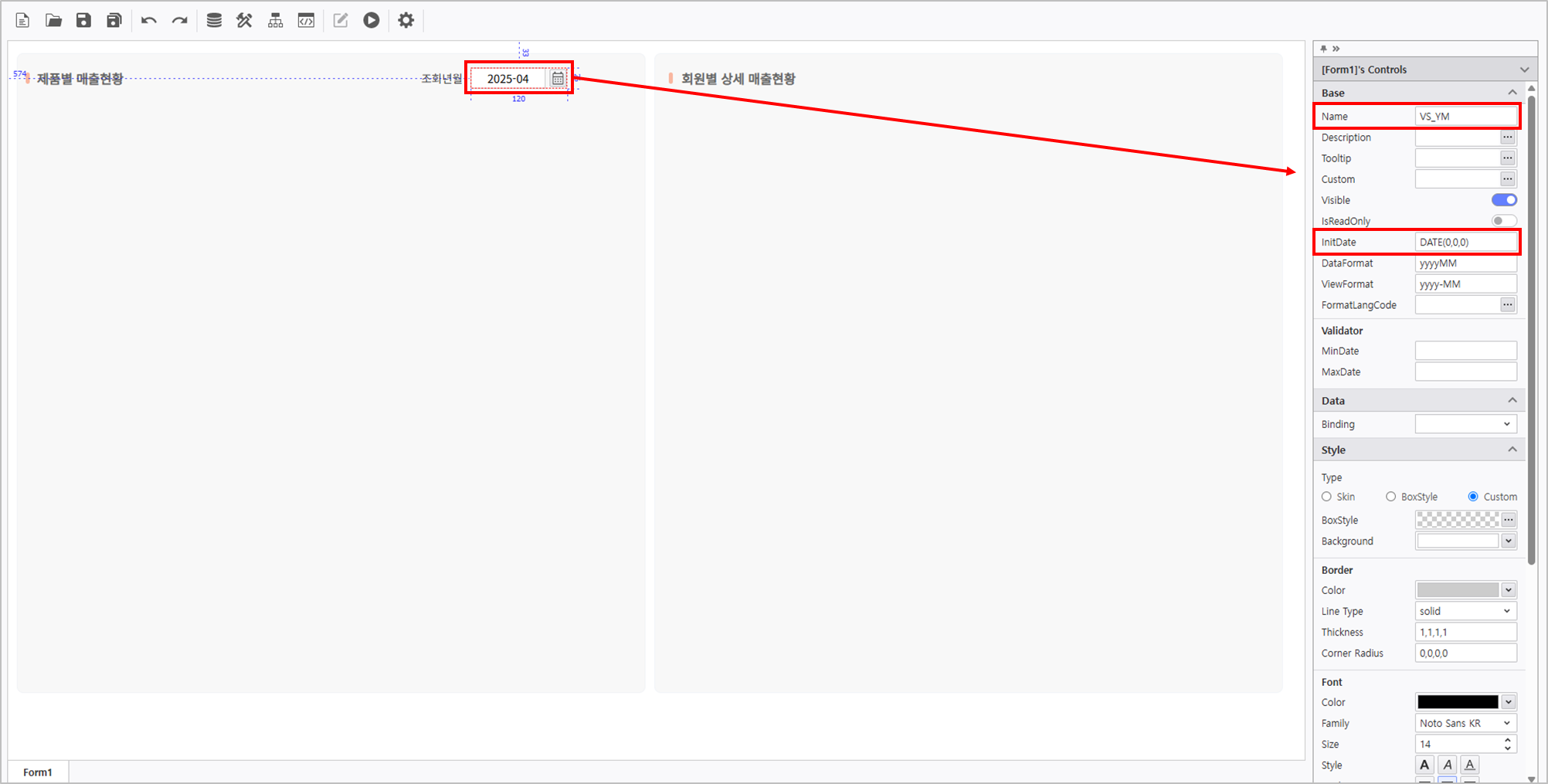

1. In the Properties Modification panel on the right, set the properties of the Calendar Control as below.

   • Name : VS_YM
   • InitDate : Now() or DATE(0,0,0)





   For detailed information about Calendar Property Configuration, please refer to the Link.







2. Set the property of the Label Control.

   Name	Text
   Label	Reporting Period



1.3 Create a Query Button Control

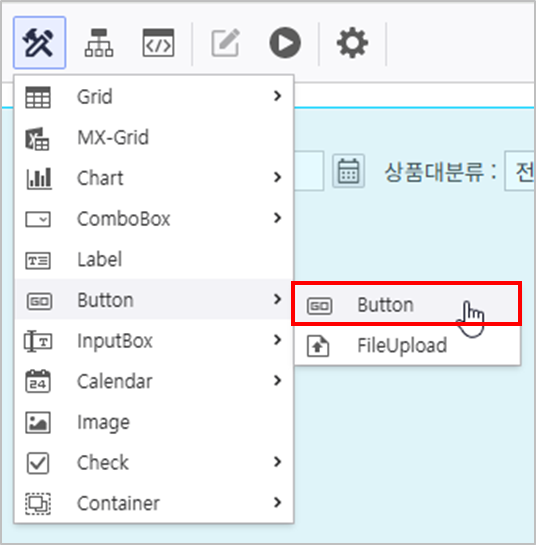

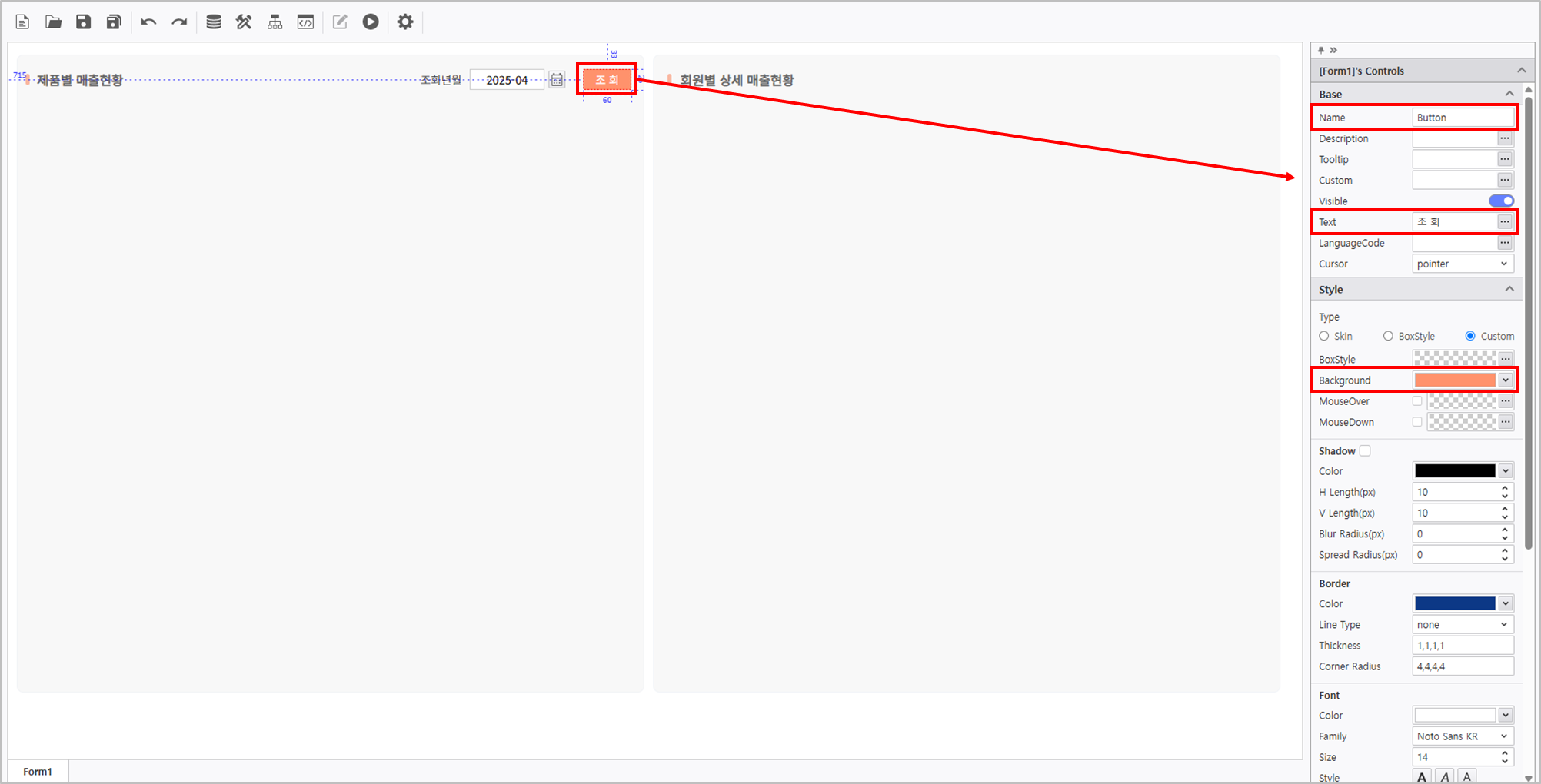

1. At the top menu, go to UI Bot > Button and create a Button Control.



2. In the Properties Modification panel on the right, set the properties as the following.

   • • Name : Button
     • Text : Search
     • Background : #ff926c





3. Verify that the Query Condition Control is placed as below image.


Step 2. Connect Chart to OlapGrid

Create and connect a OlapGrid and a Chart to display Sales Performance by Product.

2.1 Set OlapGrid

1. Create a OlapGrid

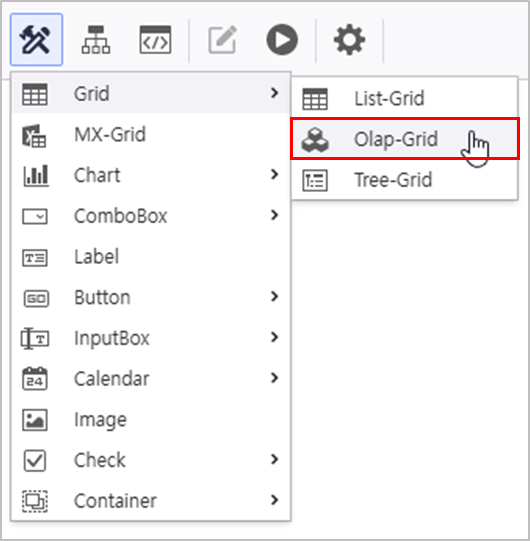

   • Go to UI Bot > Grid > "Olap-Grid"

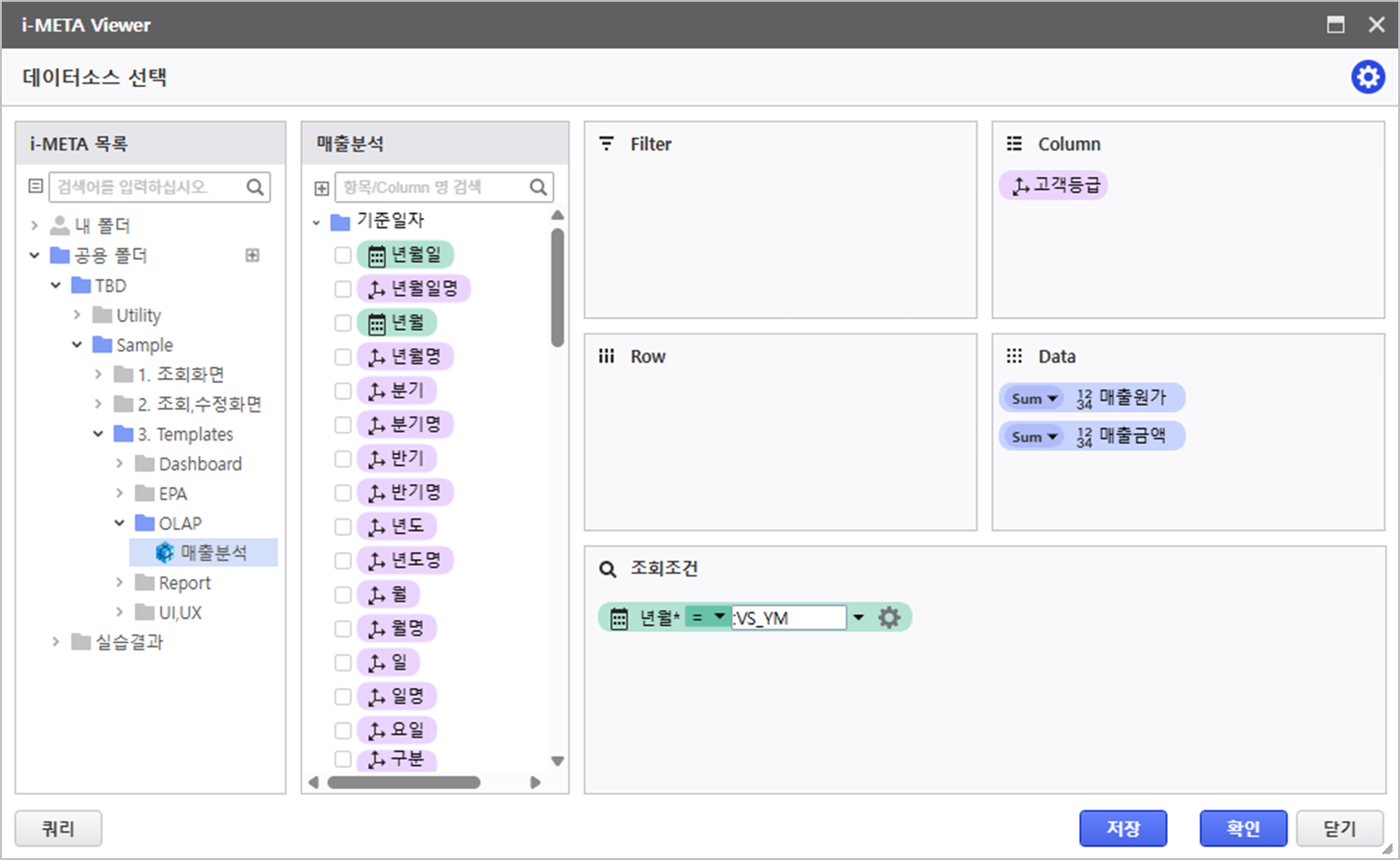

2. Connect datasource using Sales Analysis META, and activate AutoRefresh.

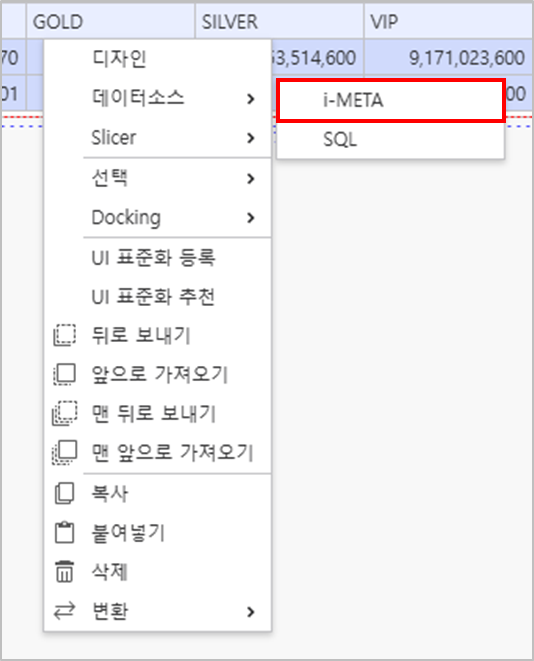

   Right-click the OlapGrid > DataSource > i-META > Select META file Sales Analysis Location : TBD > Sample > 3.Templates > OLAP > "Sales Analysis"

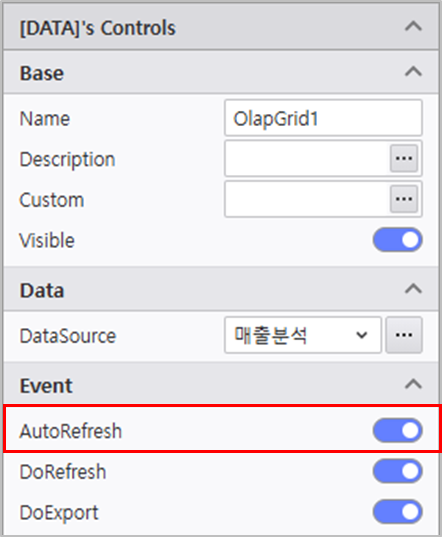

   Activate AutoRefresh in the property panel on the right of the OlapGrid.




   Query Item	Query Condition	Variable
   Column : [Customer Tier] Data : [Sales Cost, Revenue]	[YM]	:VS_YM

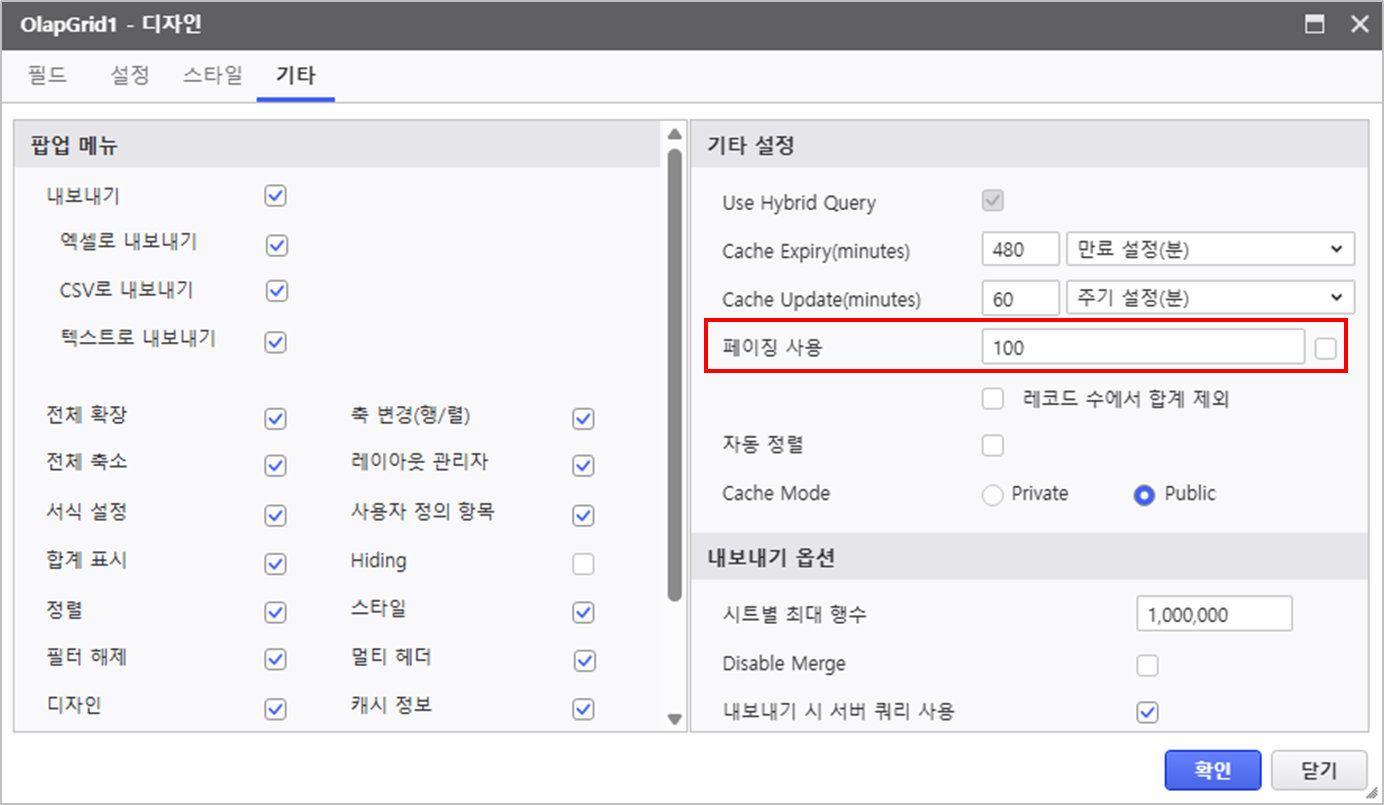

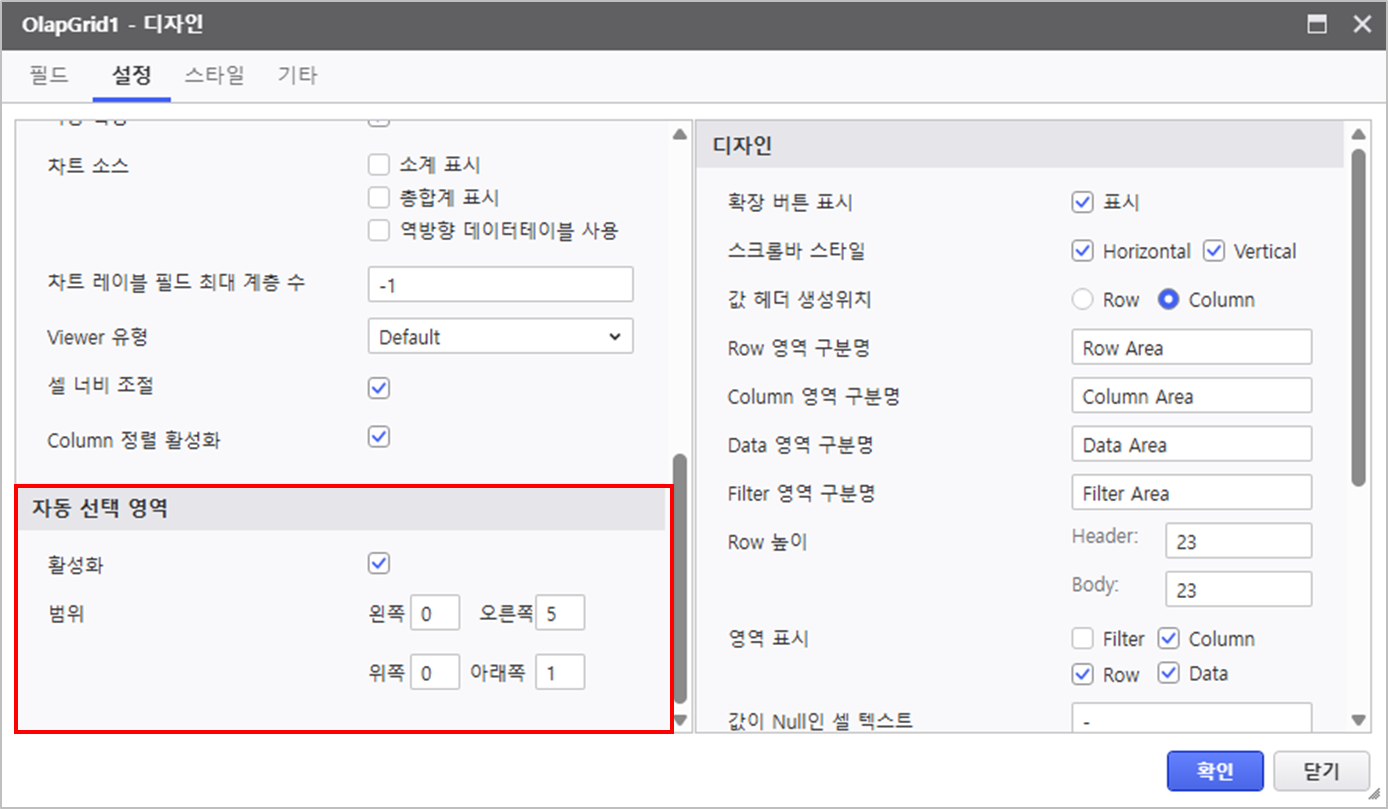

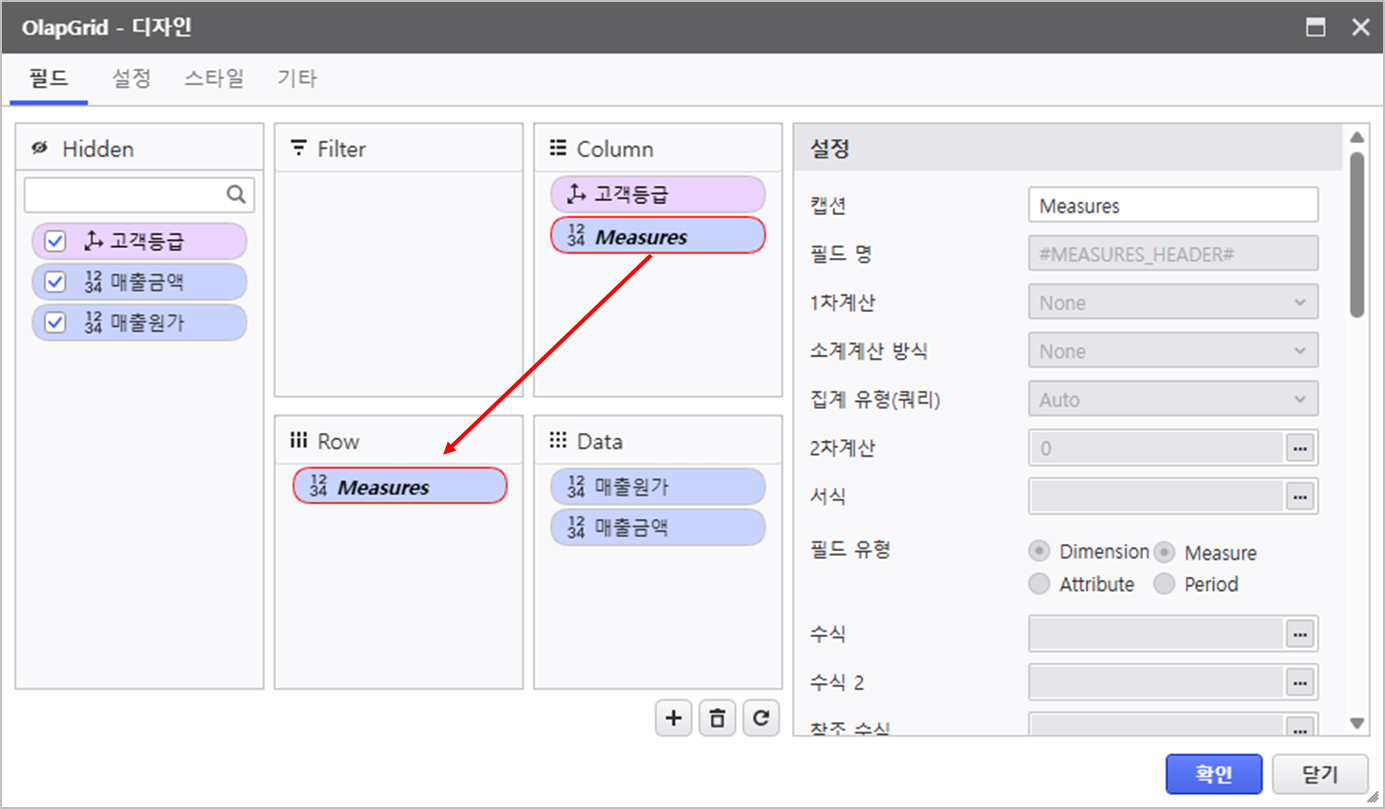

3. Right-click to open Design menu, and modify the design property.

   Field	Setting	Other Settings
   [Measures] field position changed : Column > Row	Enable auto selection area Range : Right 5, Down 1	Disable Using Paging










   [Measures] Field Position Changed : Column > Row Enable Auto Selection Area Disable Using Paging




2.2 Chart Configuration

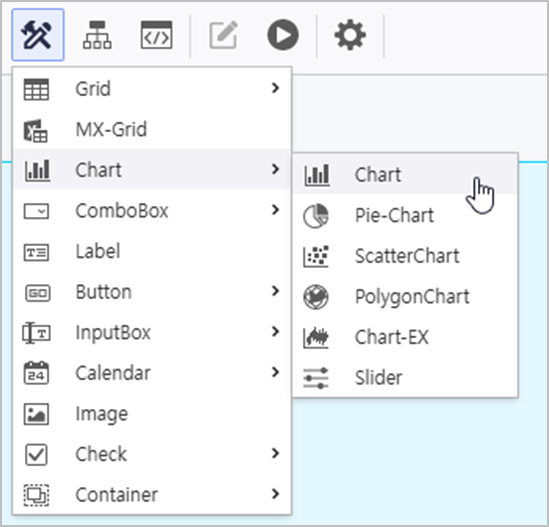

1. Create a Chart Control

   • Go to UI Bot > Chart, and select Chart

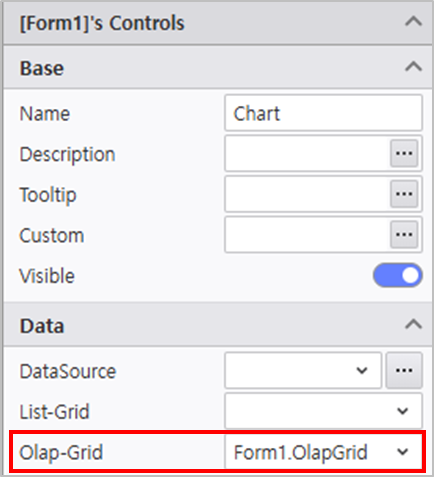

2. In the property menu on the right, configure the Chart property.

   • Olap-Grid : Form1.OlapGrid





3. Click the Design menu to modify the design property.


   Default	Series	Axis	Legend
   Data Label : Value	[Sales Cost] > Chart Type : Line Chart [Sales Cost] Axis : Y2 [Sales Cost] > Other > Sort Label : TopCenter [Revenue] > Other > Sort Label : BottomCenter	Y1 Axis : Display Disabled X Axis > Design : Major Grid Line width 0	Position : Top, Right Direction : Horizontal

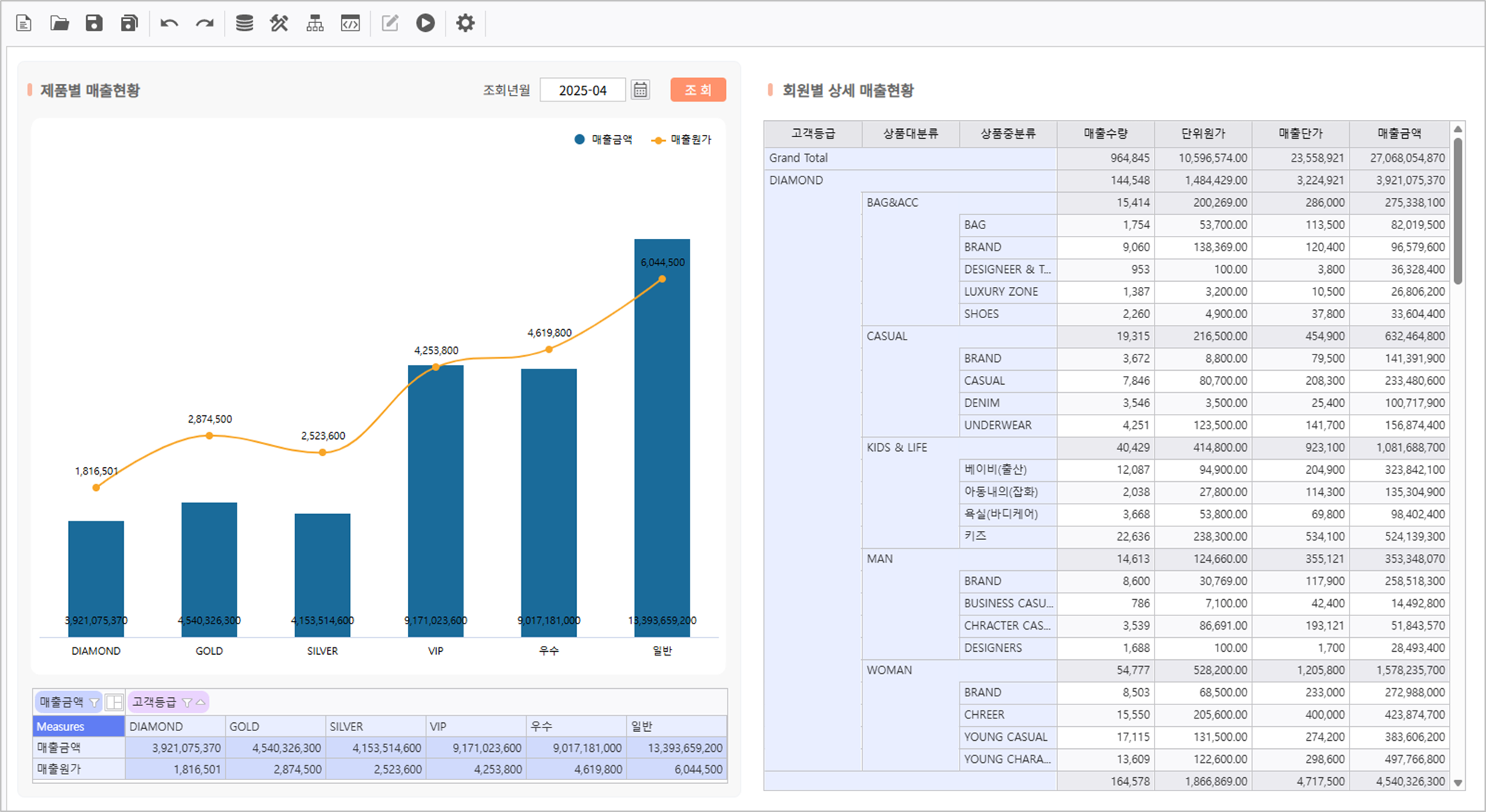

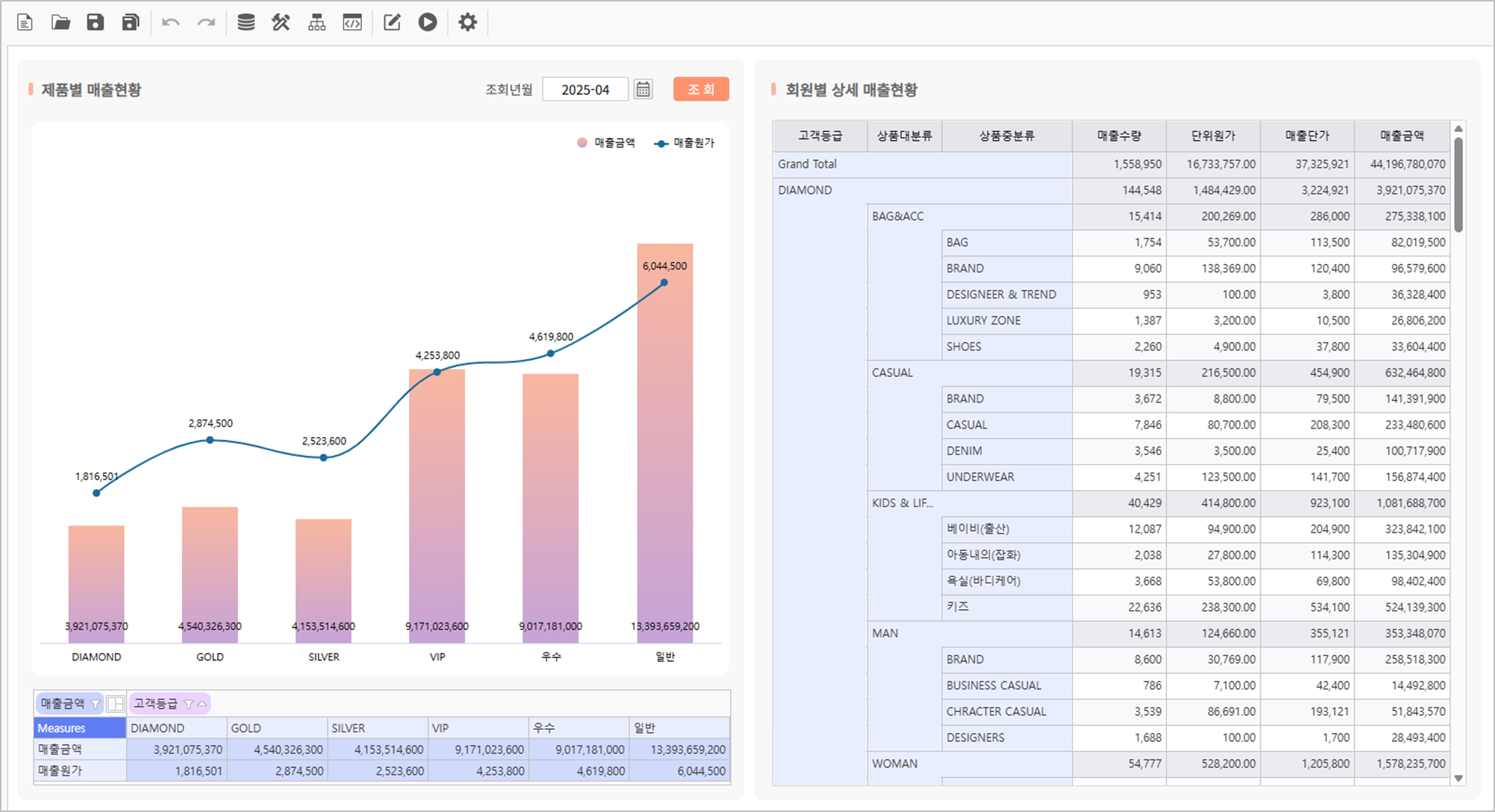

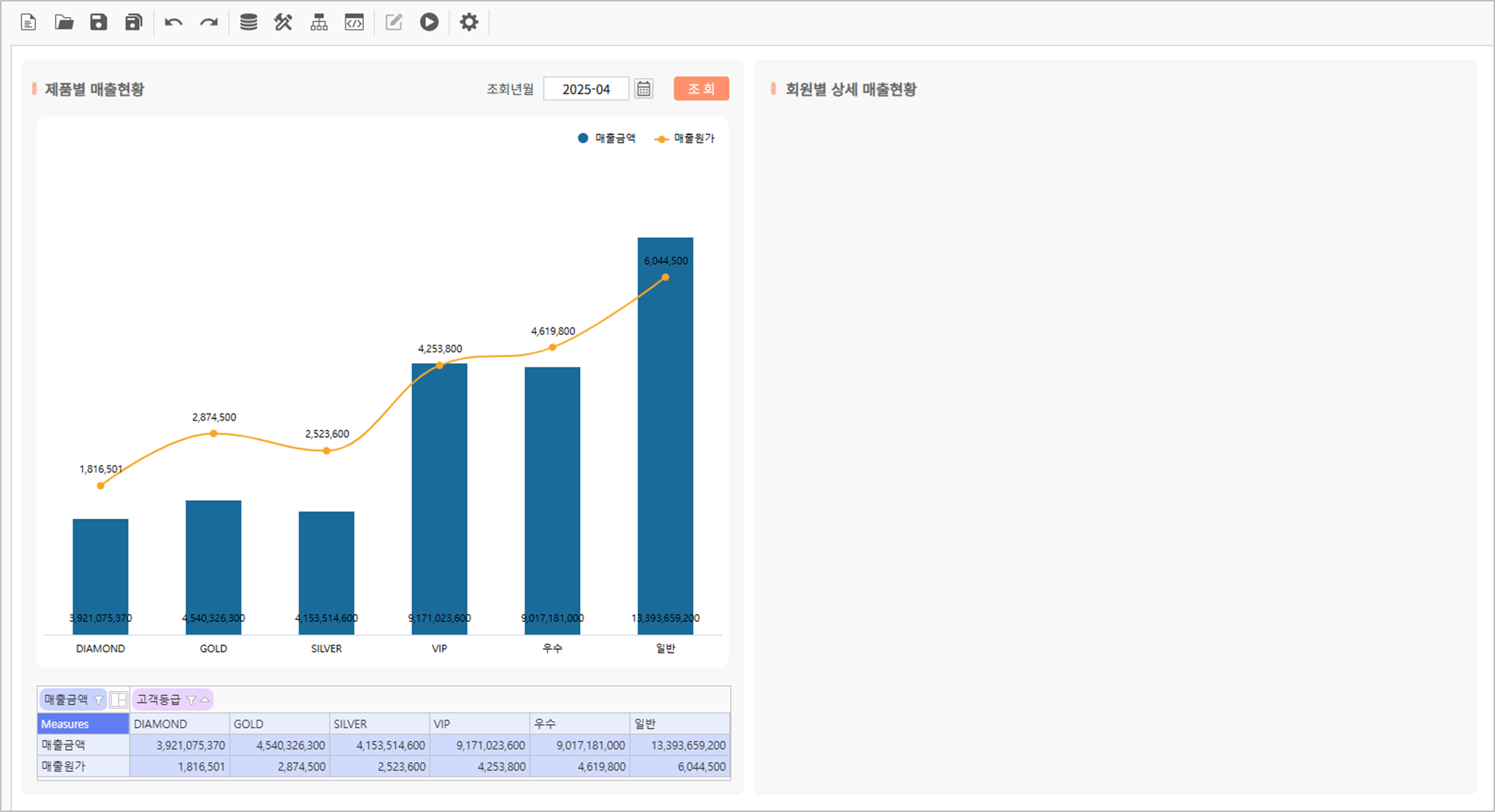

Verify that the report is working as expected.

Step 3. Set ListGrid

Set a ListGrid to display Detailed Sales Performance.

1. Go to UI Bot > Grid and create a ListGrid.

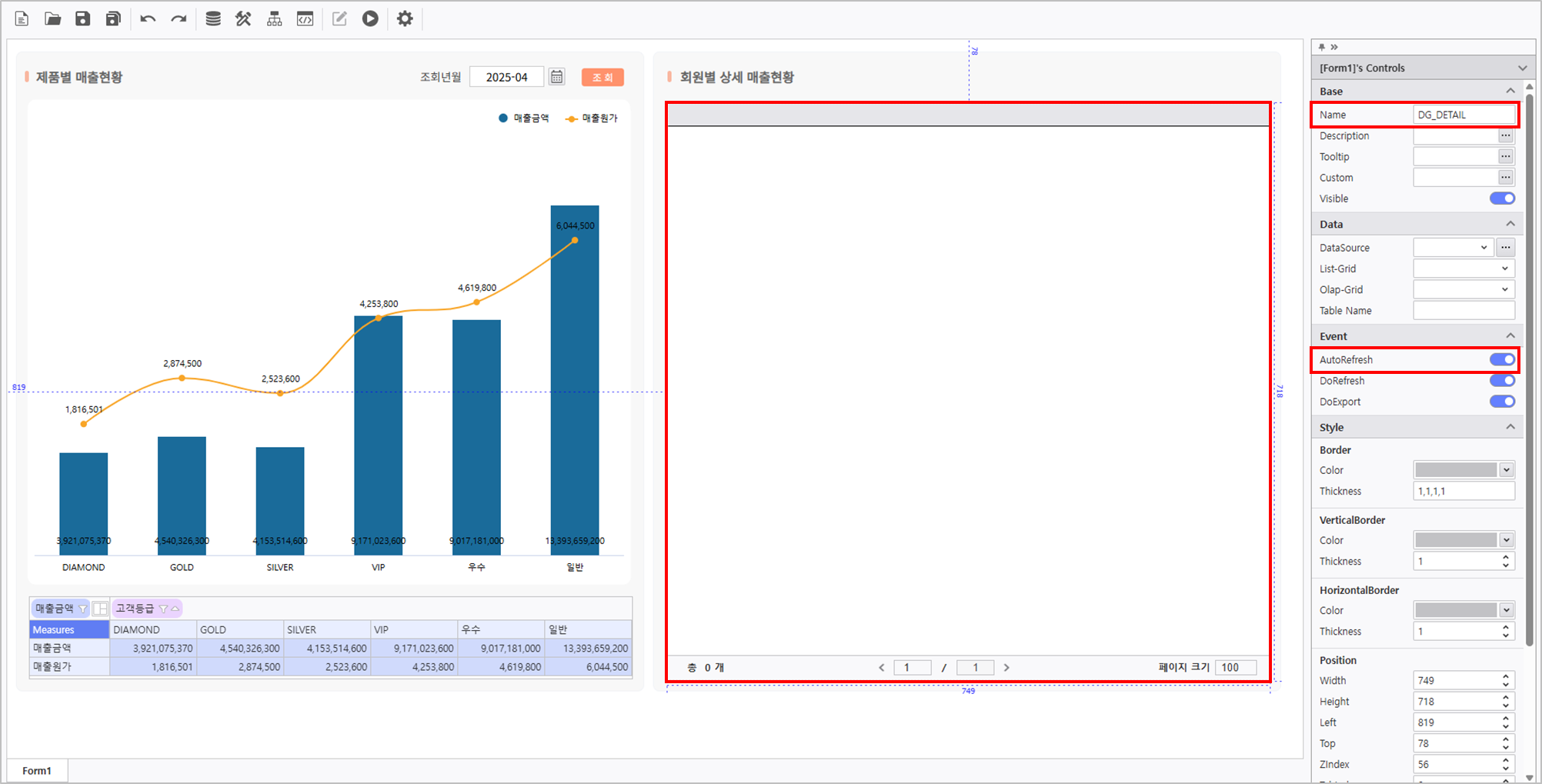

2. Set properties of the ListGrid.

   • Name : DG_DETAIL
   • AutoRefresh : Activate

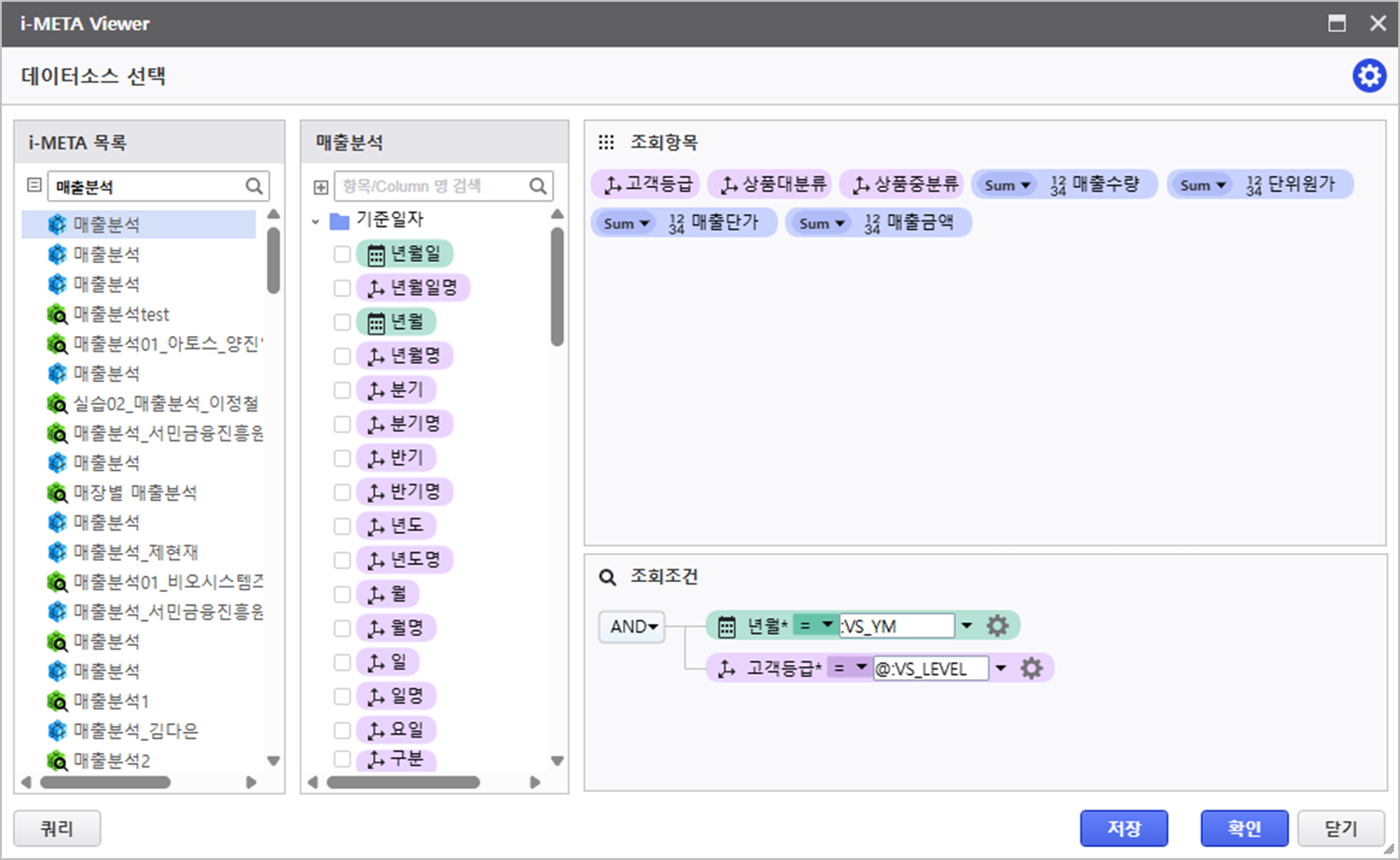

3. Connect data source using Sales Analysis META, and activate AutoRefresh.

   Query Item	Query Condition	Variable
   [Customer Tier, Product Category, Product Subcategory, Sales Quantity, Unit Cost, Unit Price, Revenue]	[YM]	:VS_YM
   	[Customer Tier]	@:VS_LEVEL



   For more information about AUD Platform Variables, please click here. VS_YM : Variable for querying data based on date value of the Calendar Control VS_LEVEL : Variable for querying ListGrid value based on [Customer Tier] data. Step 5. Utilizing in Script Editor







4. Click the Design Menu, to modify the design property.

   Setting > Default	Setting > Group
   View Header > Row : Disable	Group : [Customer Tier, Product Category, Product Subcategory] Subtotal Position : Top Grand Total Position : Top





Verify that the report is working as expected.

Step 4. Utilizing Process Bot

Set a module for Chart Design Effect and Report Update.

4.1 Chart Gradient Effect Application Module Setting

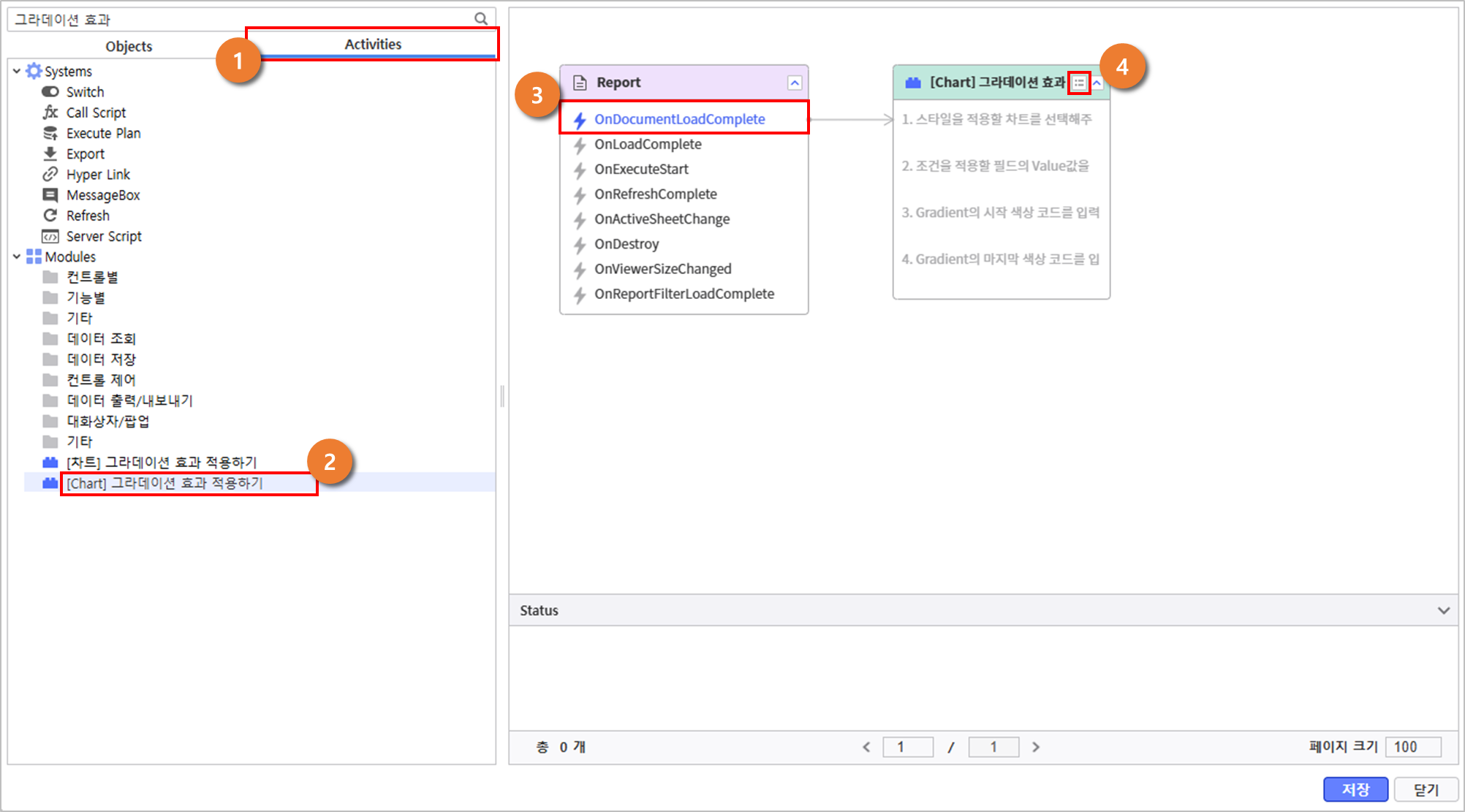

1. Click the Process Bot icon at the top.

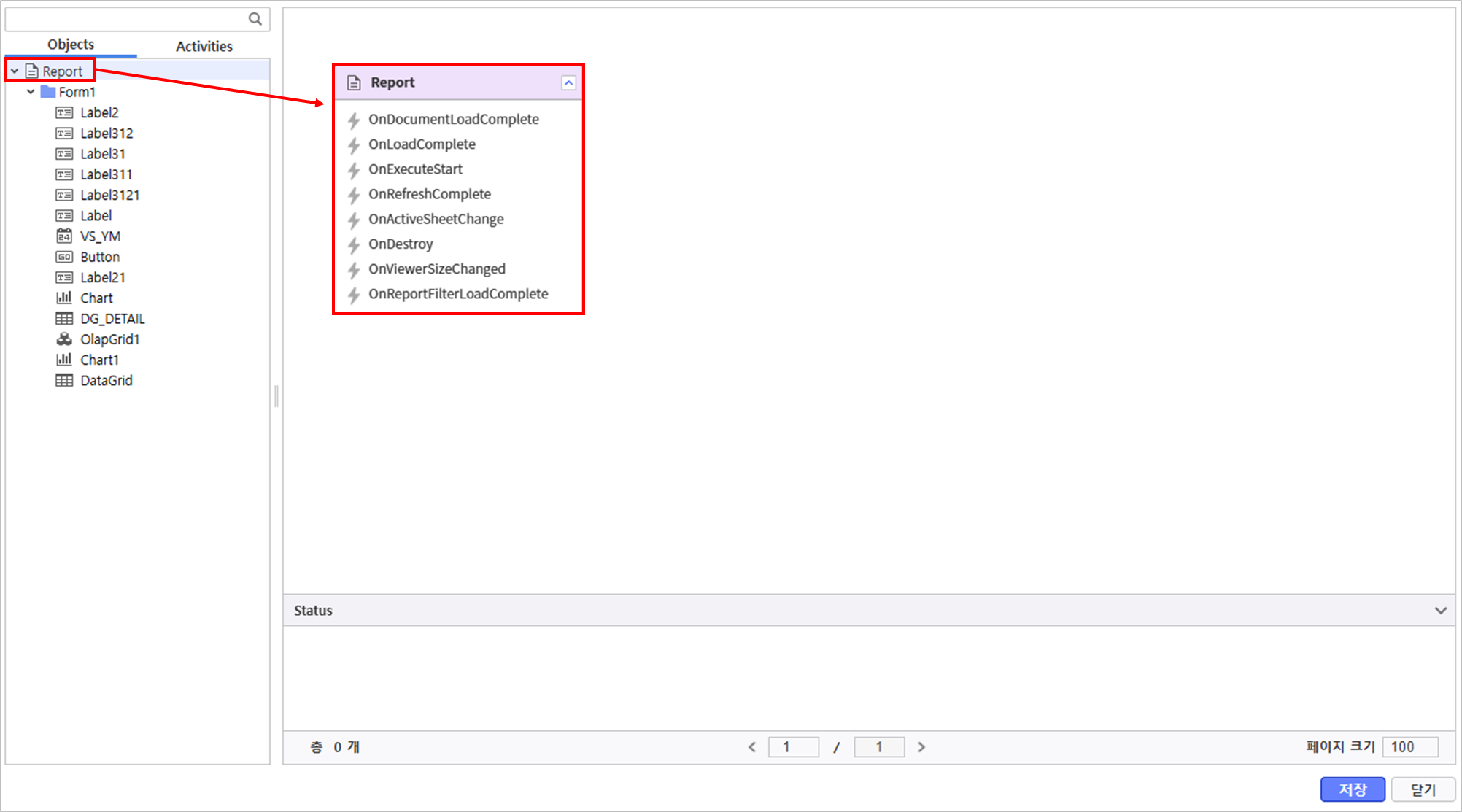

2. In the Object tab, double-click and place the Report.



3. Load a module that sets the Chart gradient effect, connect with OnDocumentLoadComplete event of the Report,
   and click Number 4 icon for parameter setting.


   • Module Name : "[Chart] Gradient Effect Application"

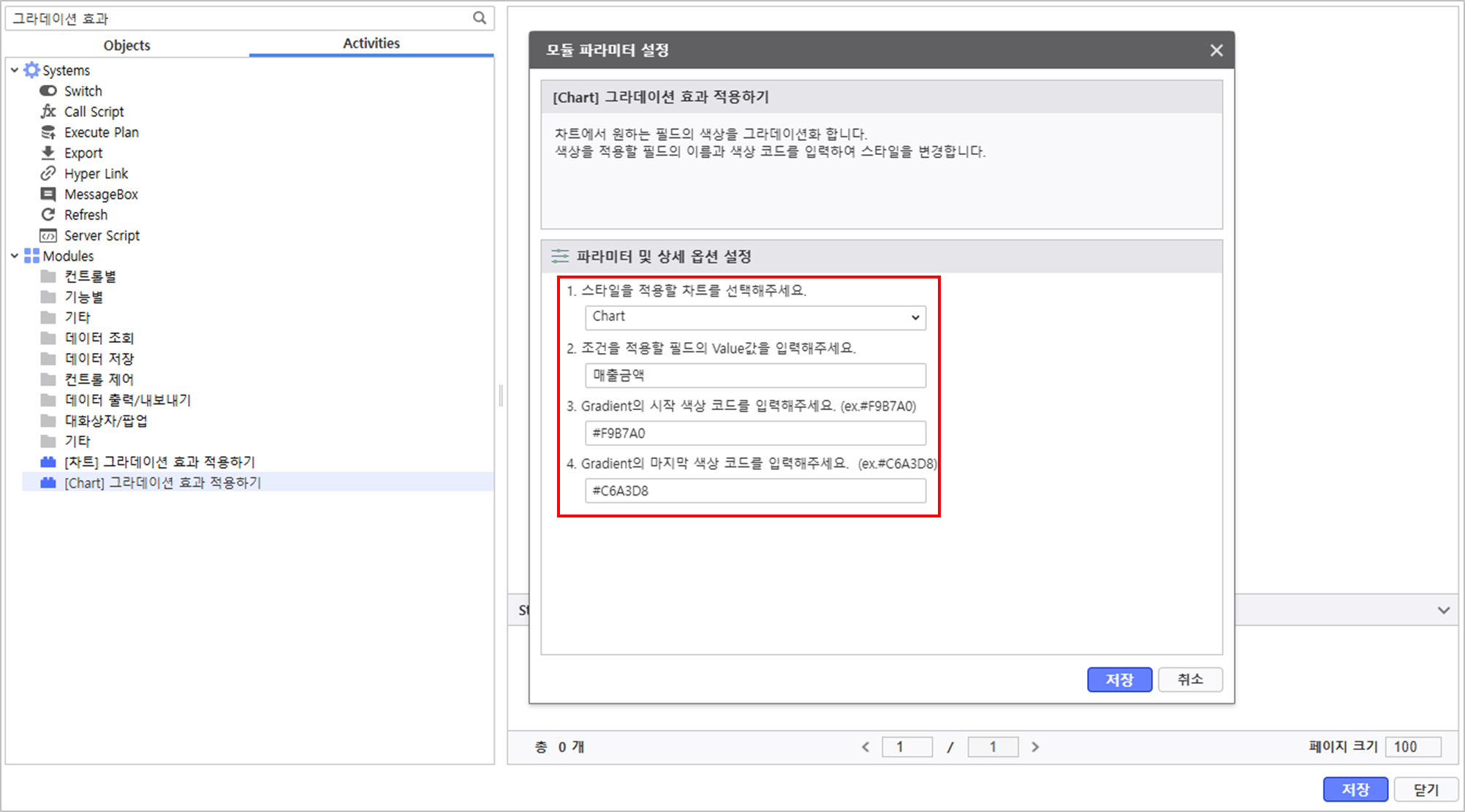

4. Set the parameters of the module as below and Click Save button.

   • Target Chart for Style Application : Chart
   • Field Value to Apply Condition : [Sales Amount]
   • Gradient Start Color Code : #F9B7A0
   • Gradient End Color Code : #C6A3D8





4.2 Refresh for Query Button Module Setting

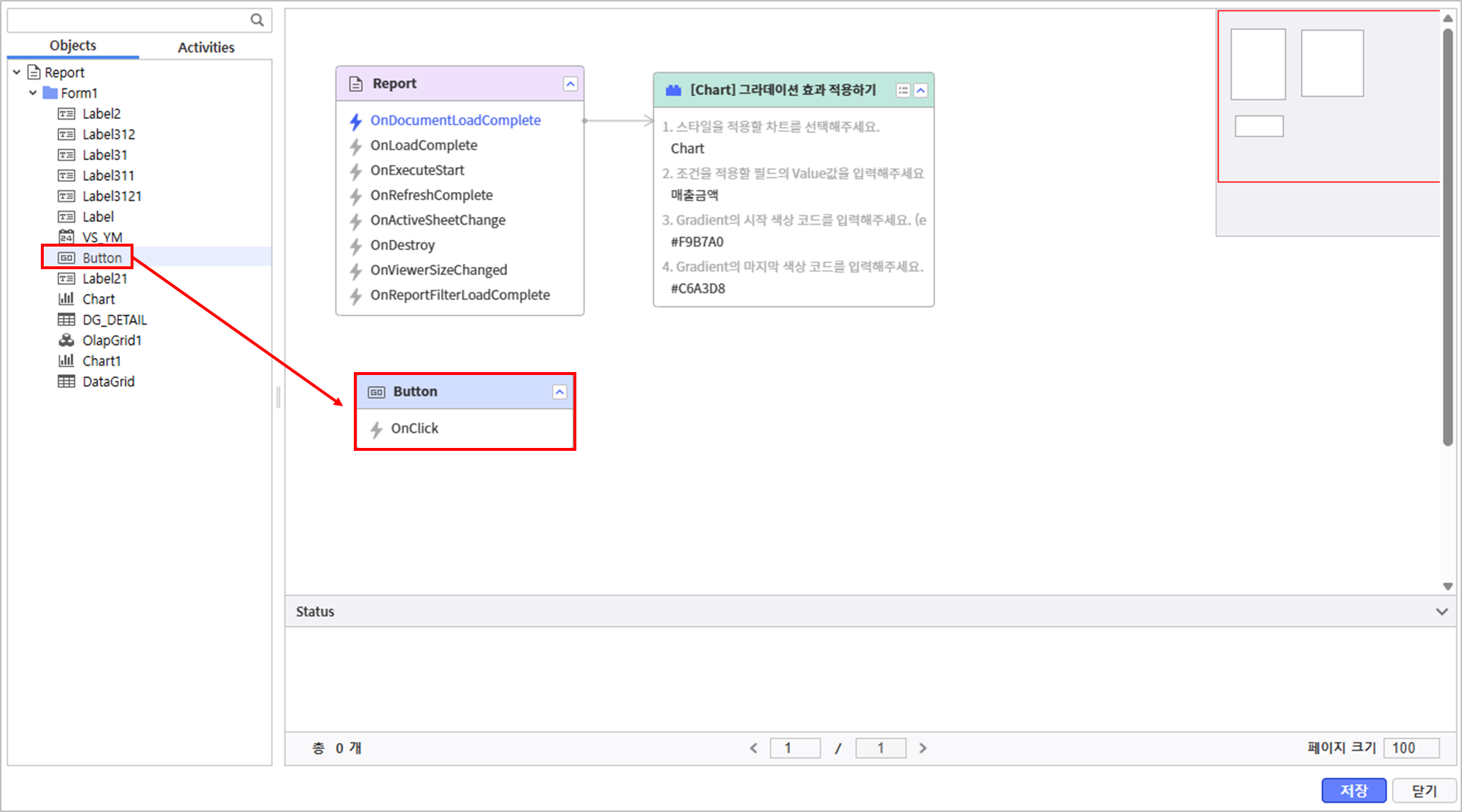

1. In the Process Bot > Object tab, select and place a Button.

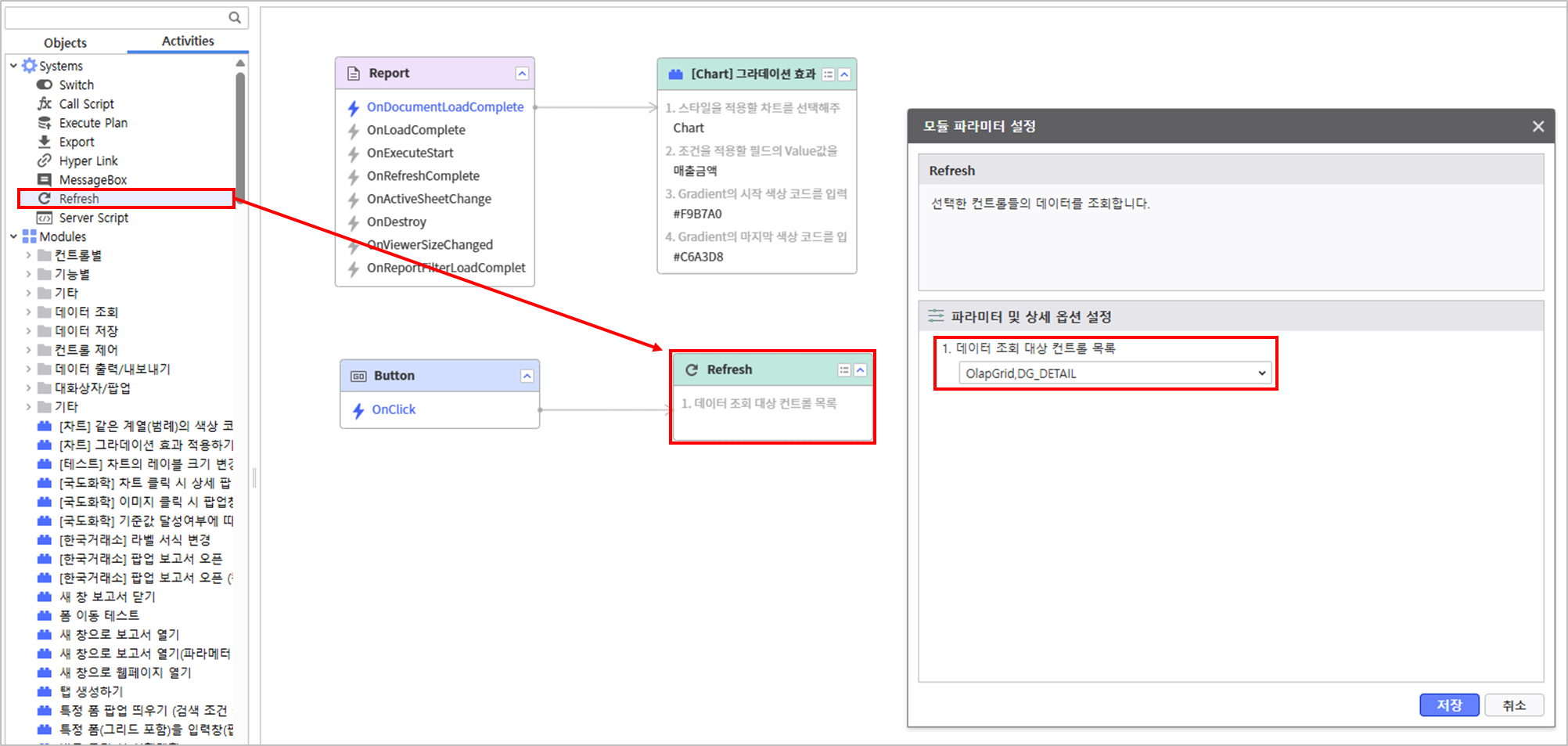

2. In the Activities tab, click system module, Refresh, connect with Button's OnClick event, and set query target parameter.

   • Query Target Control List : OlapGrid, DG_DETAIL





Step 5. Utilize the Script Editor

5.1 Writing a Variable Initializing Script

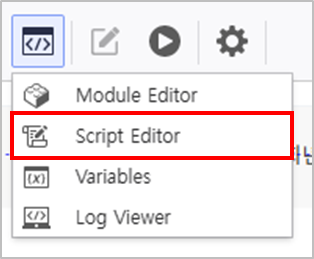

1. In the report's top menu, click Edit Group > Script Editor.



2. Search and double-click an API to use.

   • API to Use  : OnDocumentLoadComplete

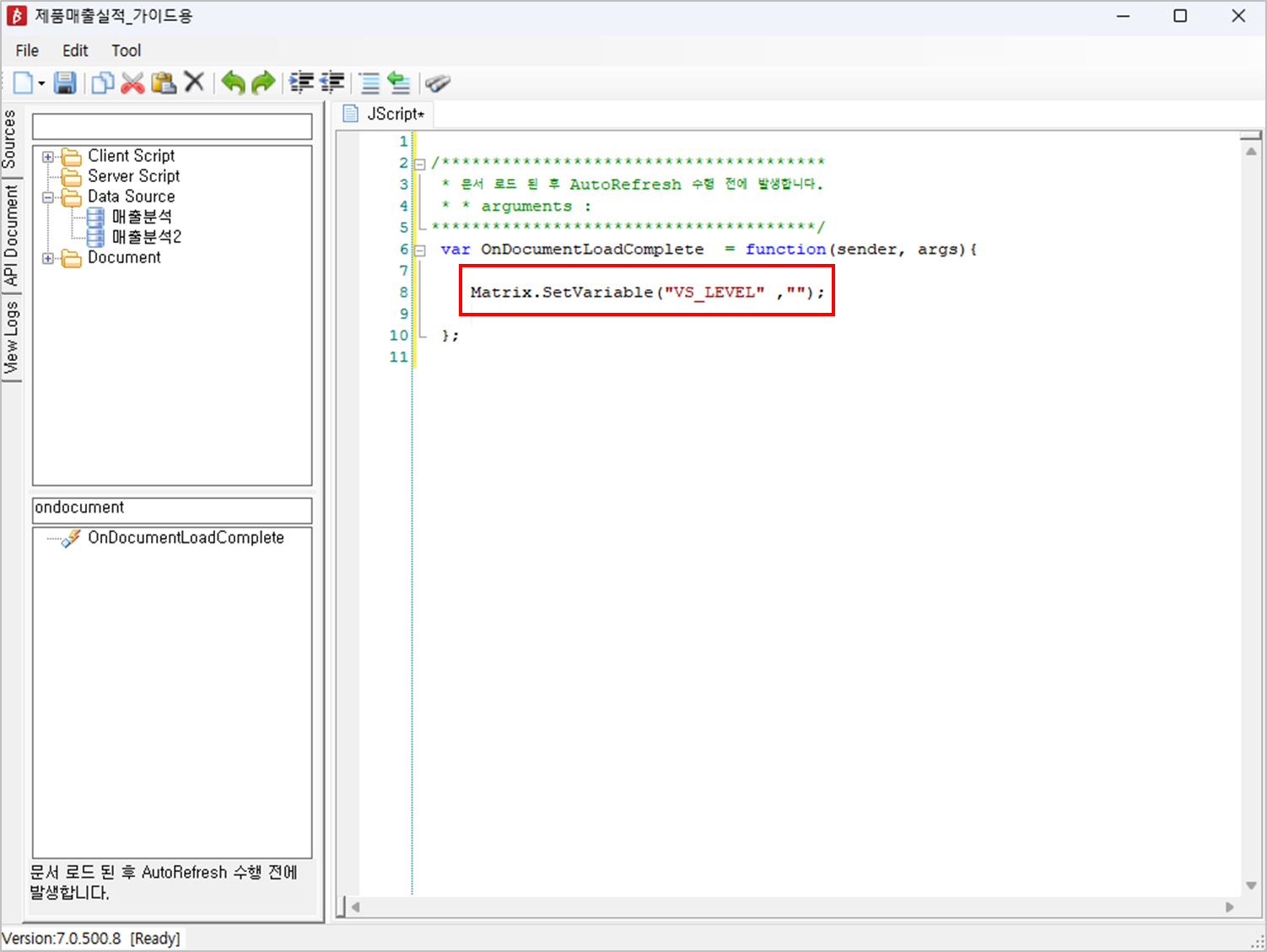

3. Write the following script to initialize a variable.





   Matrix.SetVariable("VS_LEVEL", "");

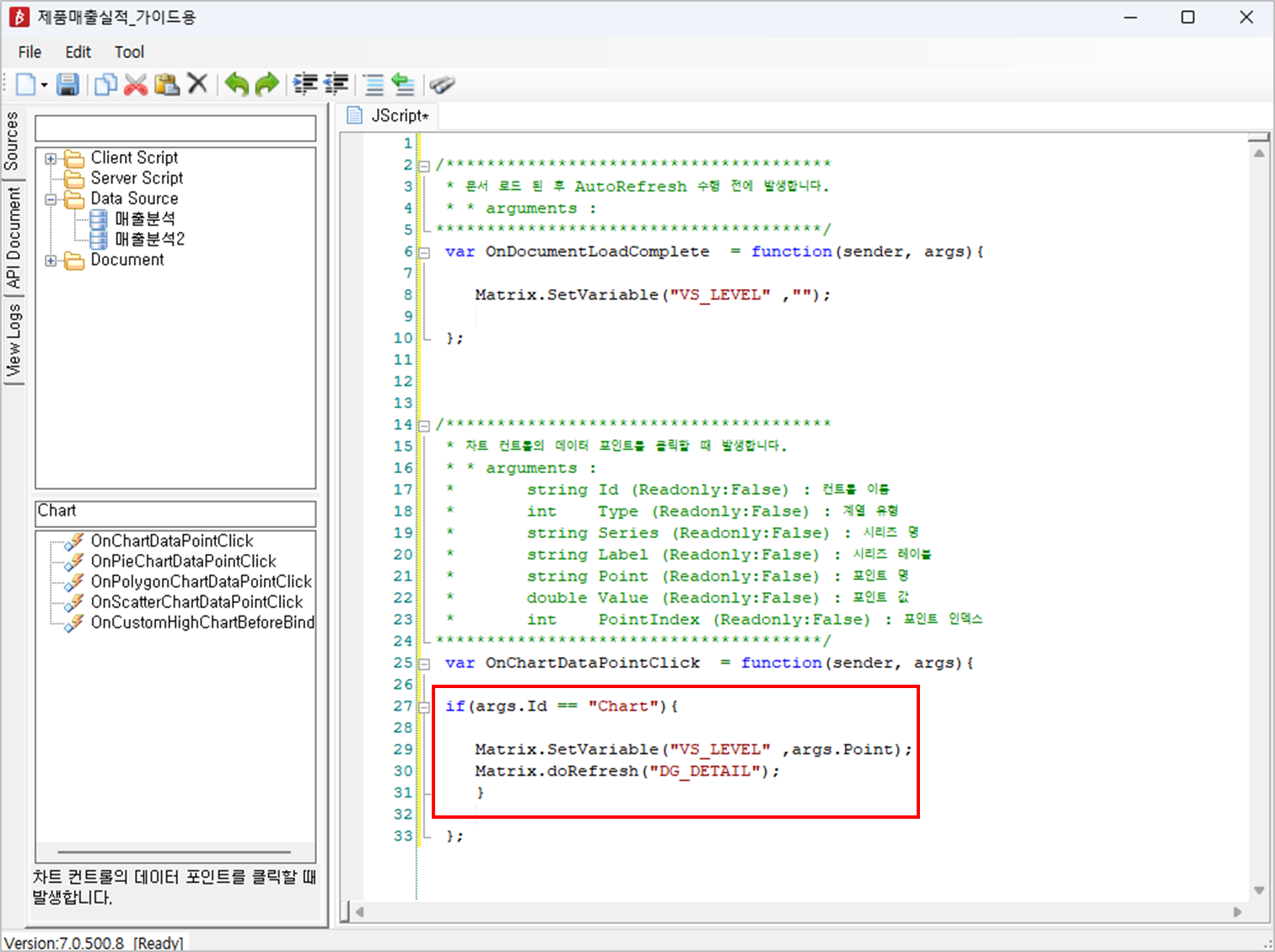

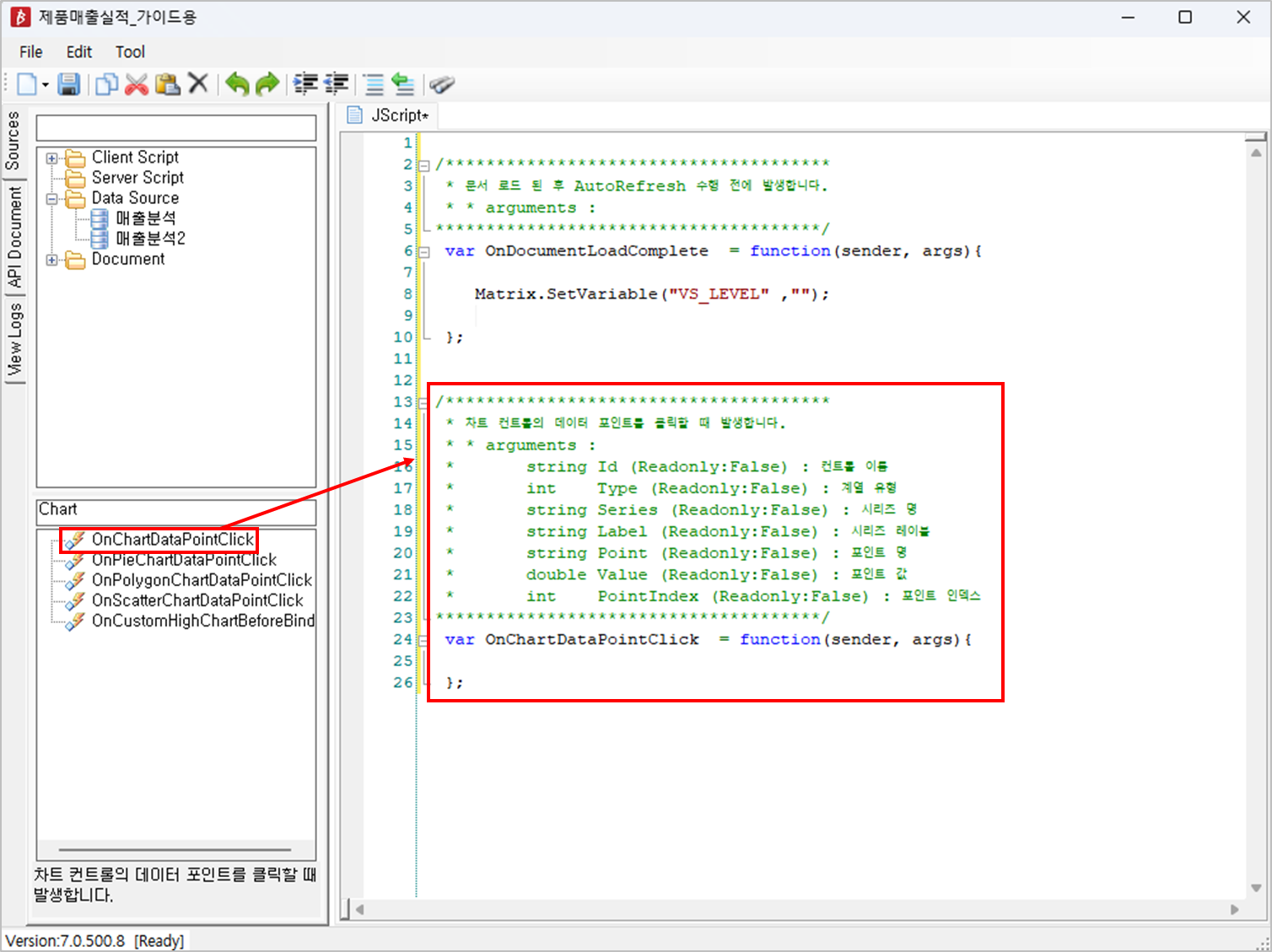

5.2 Write a Script to Refresh the DataGrid when a Chart is Clicked

1. Search and double-click an API to use.




2. Write a script for an event when the Chart is clicked.





   if(args.Id == "Chart"){ Matrix.SetVariable("VS_LEVEL" ,args.Point); Matrix.doRefresh("DG_DETAIL"); }







Verify that the report is working as expected.
